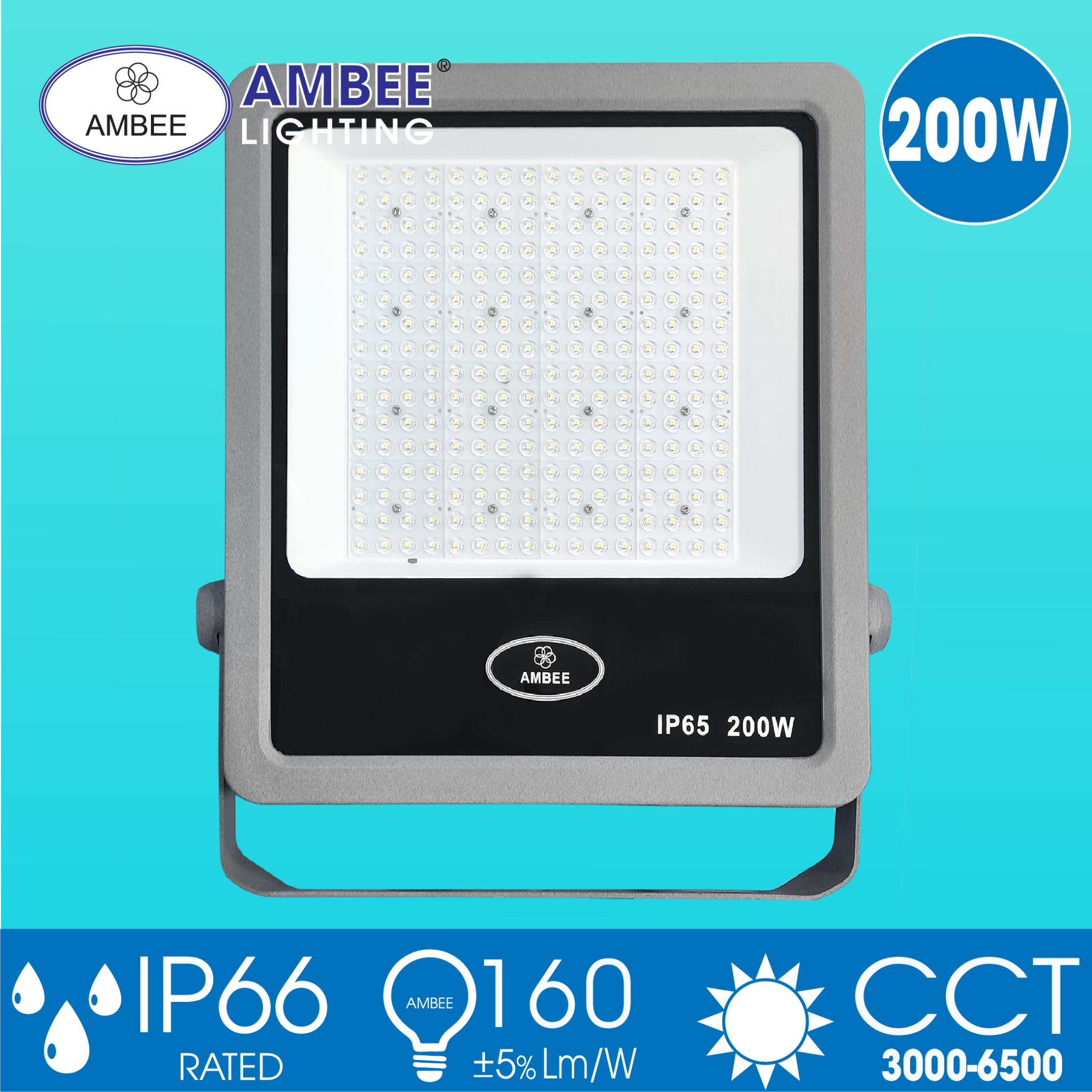

Led Floodlight TD01 200W
Led Floodlight TD01 200W
Led Floodlight TD01 200W
Led Floodlight TD01 200W
Led Floodlight TD01 200W

Led Floodlight TD01 200W

Price :Contact
Trademark AMBEE
AMBEE-TD01-200W

Sales policy

  • Free: consulting on designing energy saving lighting solutions.
  • Free: 100% of the cost of the product trial.
  • Free: City shipping. HCM within 10km.
  • Free: Suburban shipping with purchase of more than 200 sets
  • Warranty: from 3 to 5 years depending on the product
  • Maintenance: Periodic product inspection at the factory every 3 - 6 months.

PRODUCT SPECIFICATIONS:

 PRODUC MODELAMBEE-TD01-200W
 Power150W
 Input Voltage100 - 240 VAC/ 50 - 60Hz
 Power Factor (PF)>0.9
 Working temperature-30°C ~ 50°C
 CRI80Ra
 CCT3000 - 6000K
 Beam Angle90°/ 120°
 Efficacy160 Lm/W  ±5%
 Luminous Flux32.000 Lm  ±5%
 Dimension416x352x58 mm (LxWxH)
 Weight2.8 kg
 MaterialDie cast aluminum + Glasses
 Protection levelIP66
 Led TypeSMD 3030 - Philips
 Source TypeAMBEE
 Life time50.000 h
 Warranty2~5 year
 OriginAMBEE

PRODUCT DIMENSIONS:

 BEAM ANGLE:



ILLUMINATION DISTRIBUTIONS DRAWING:
