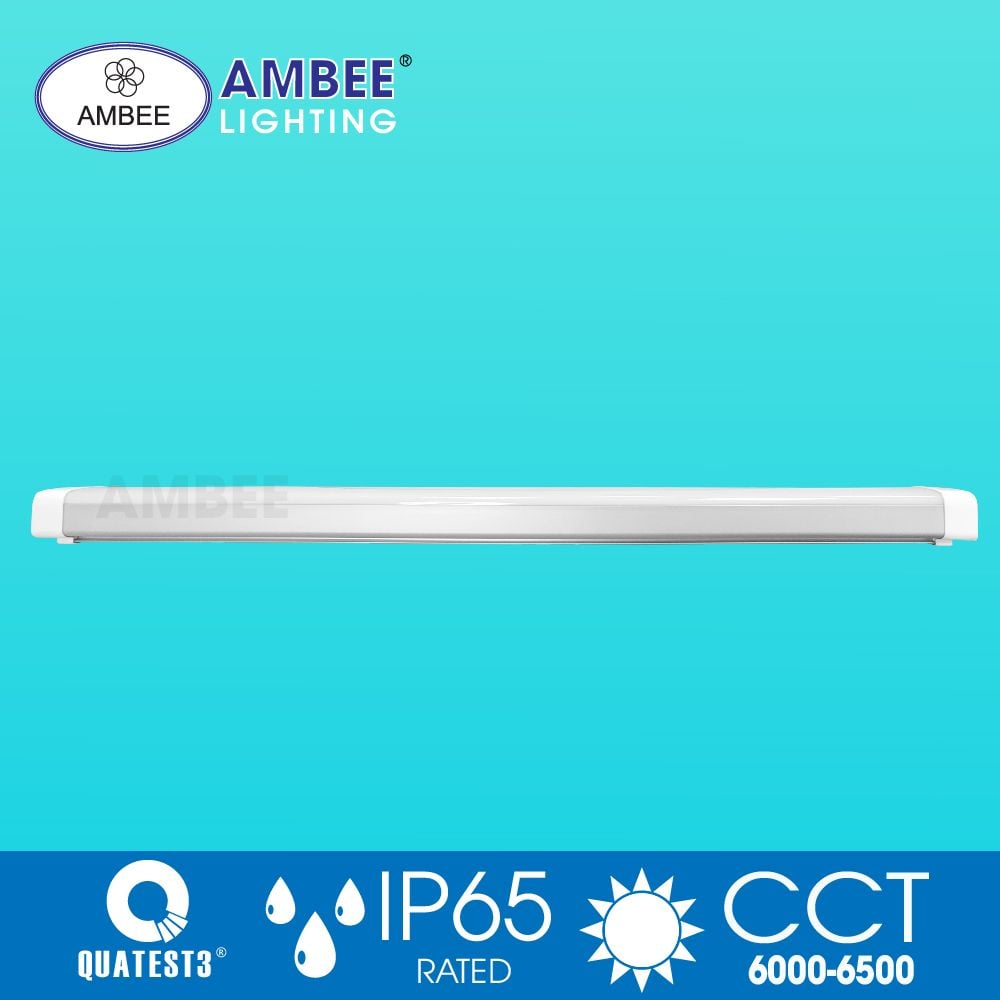

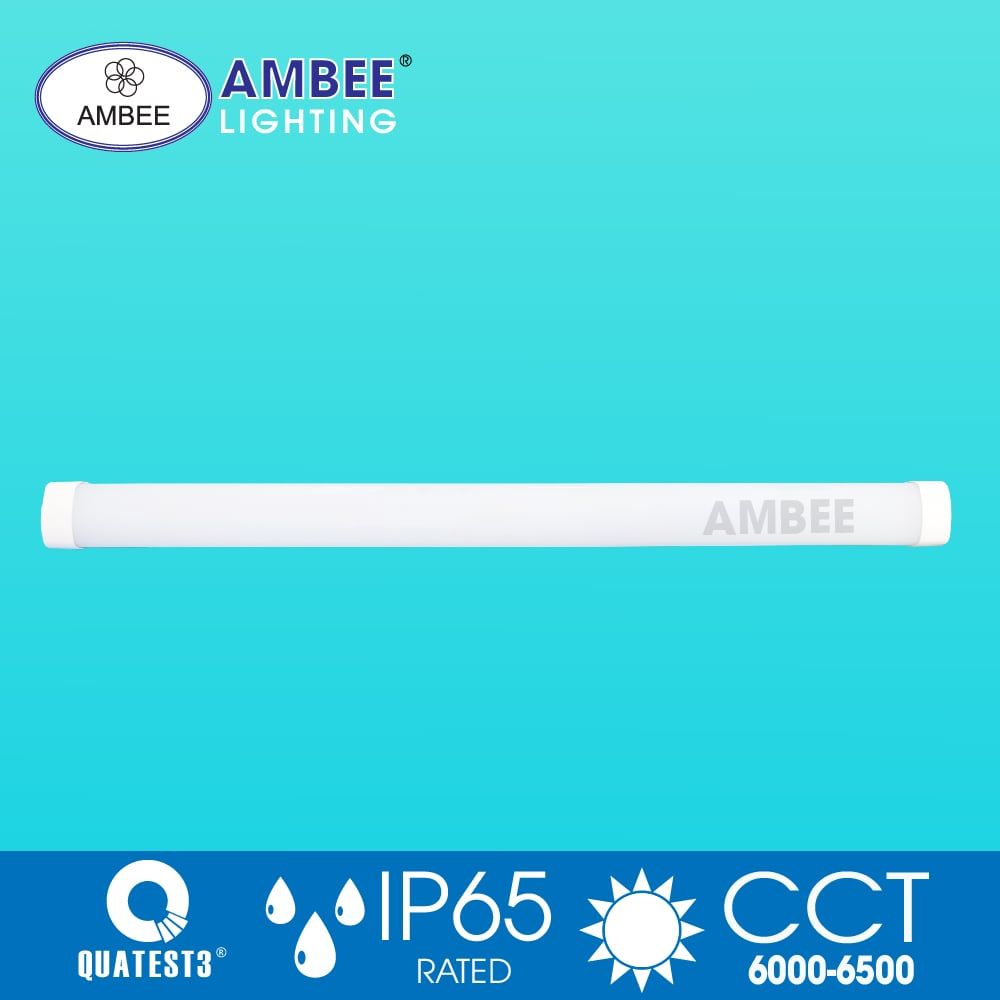

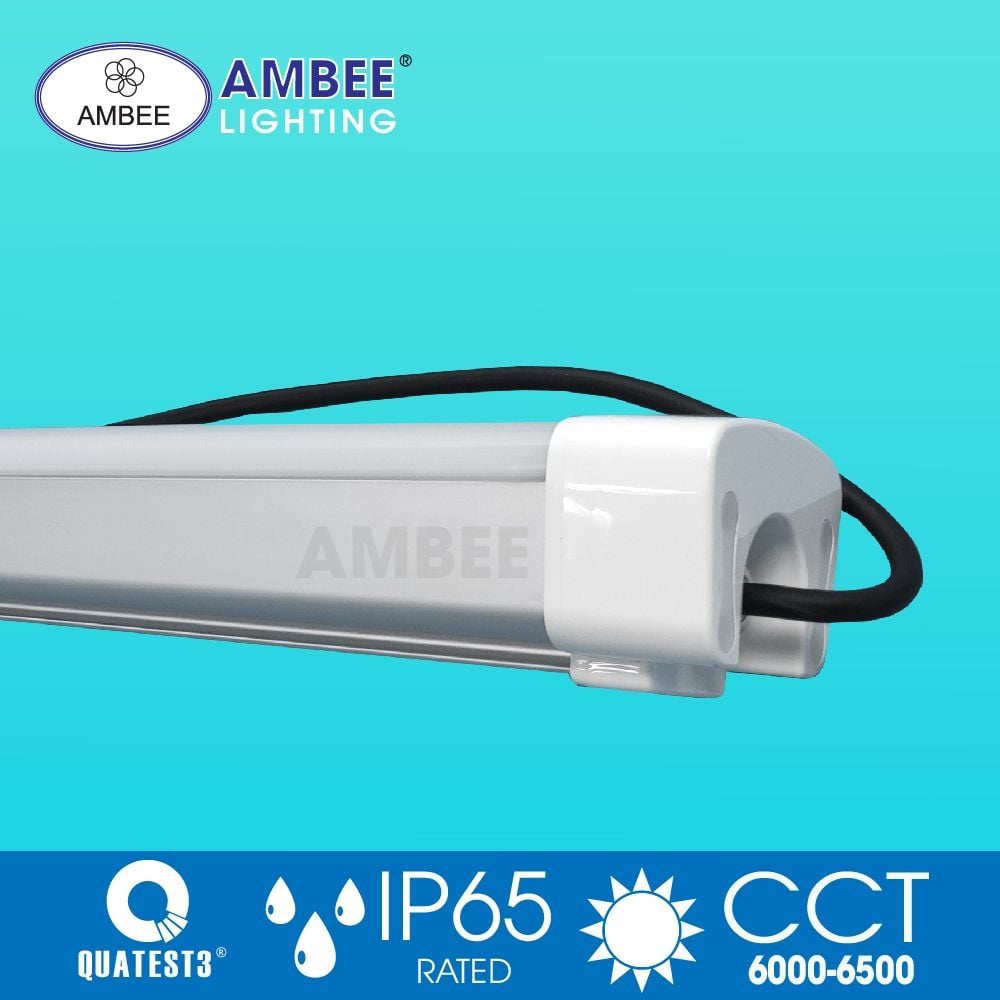

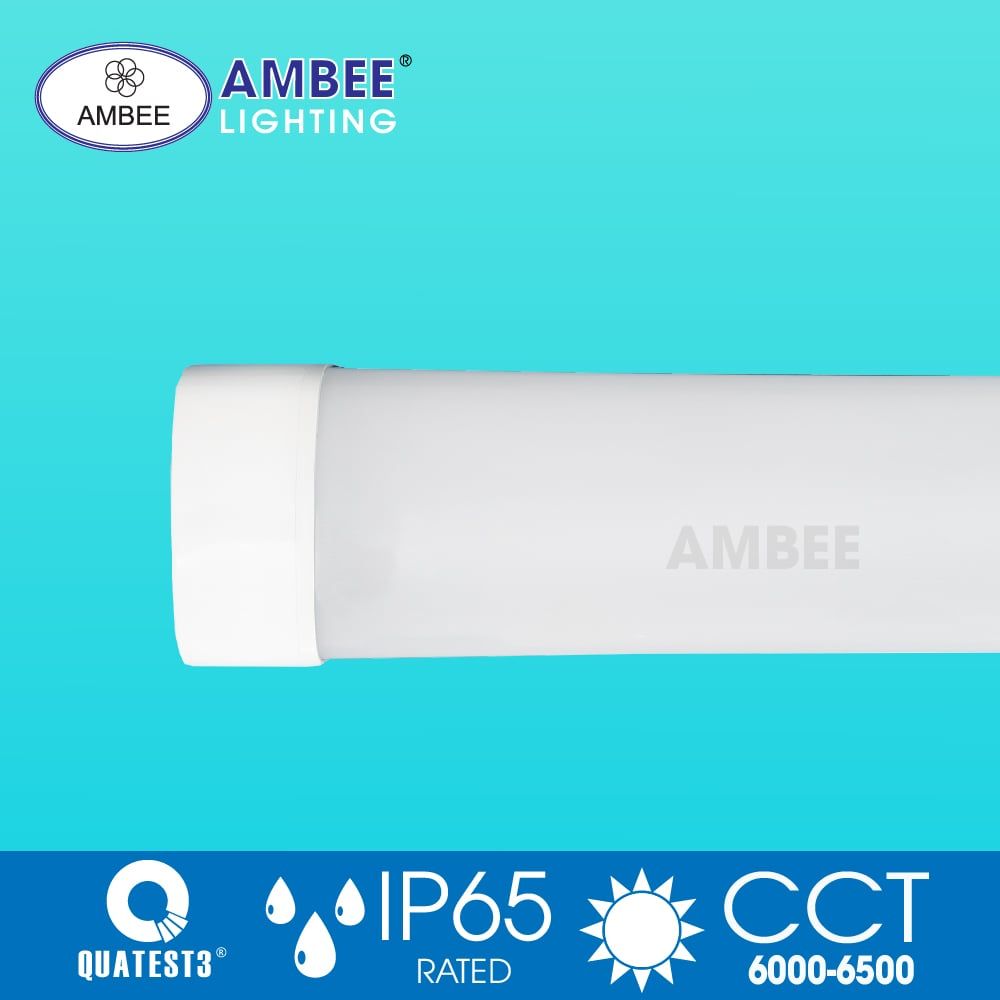

Tri-proof Linear Light 30W
Tri-proof Linear Light 30W
Tri-proof Linear Light 30W
Tri-proof Linear Light 30W
Tri-proof Linear Light 30W
Tri-proof Linear Light 30W

Tri-proof Linear Light 30W

Price :Contact
Trademark AMBEE
AMBEE-ALU-IP65-30W

Sales policy

  • Free: consulting on designing energy saving lighting solutions.
  • Free: 100% of the cost of the product trial.
  • Free: City shipping. HCM within 10km.
  • Free: Suburban shipping with purchase of more than 200 sets
  • Warranty: from 3 to 5 years depending on the product
  • Maintenance: Periodic product inspection at the factory every 3 - 6 months.

PRODUCT SPECIFICATIONS:

 PRODUC MODELAMBEE-ALU-IP65-30W
 Power30W
 Input Voltage220 - 240 VAC/ 50 - 60Hz
 Power Factor (PF)>0.9
 Working temperature-20°C ~ 50°C
 CRI>80Ra
 CCT3000 - 6500K
 Beam Angle120°
 Efficacy150 Lm/W ±5%
 Luminous Flux4.500 Lm ±5%
 Dimension1200x75x65 mm (LxWxH)
 Weight2.0 kg
 MaterialAluminum + PC (Polycarbonat)
 Led TypeSMD 2835
 Led Qty320 Pcs
 Source TypeAMBEE
 Life time50.000 h
 Warranty2~5 year
 OriginAMBEE

PRODUCT DIMENSIONS:



 BEAM ANGLE:





ILLUMINATION DISTRIBUTION DRAWING:
