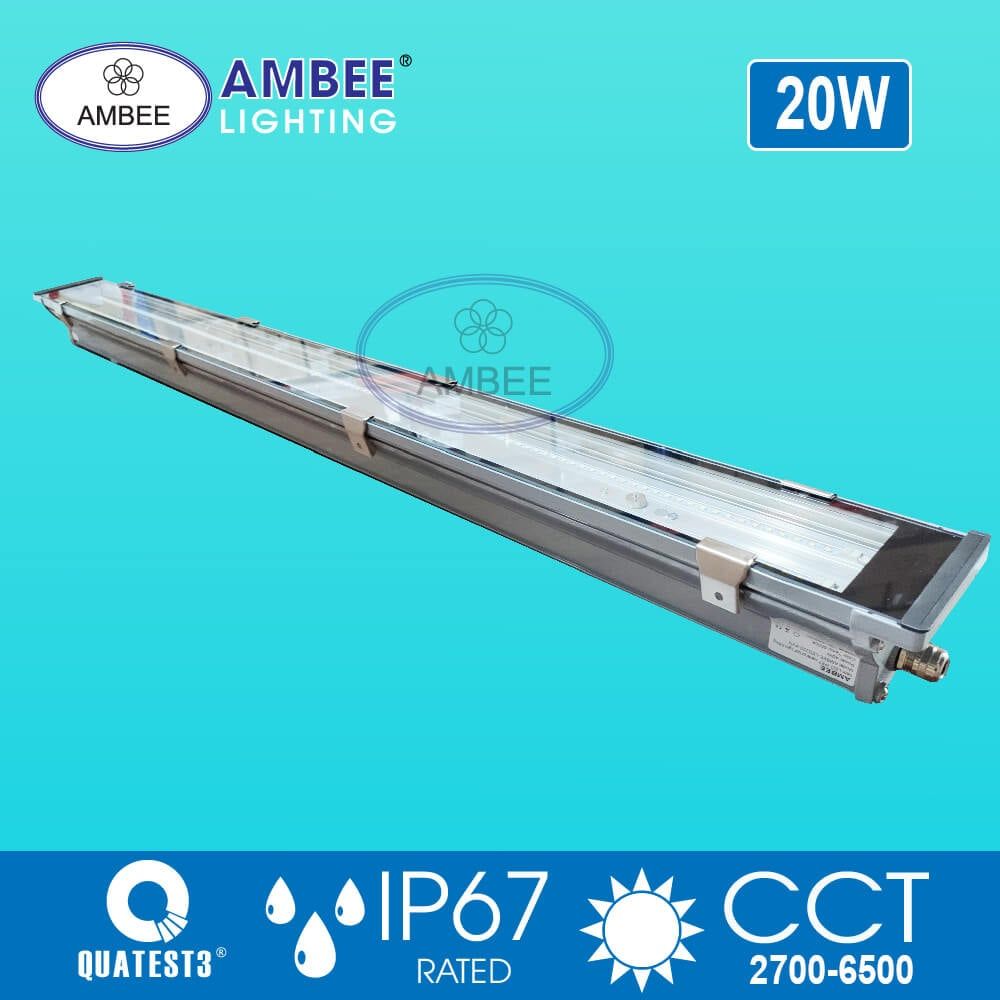

Led Waterproof IP67 Single 1m2 20W
Contact
Sales policy
-
Free: consulting on designing energy saving lighting solutions.
-
Free: 100% of the cost of the product trial.
-
Free: City shipping. HCM within 10km.
-
Free: Suburban shipping with purchase of more than 200 sets
-
Warranty: from 3 to 5 years depending on the product
-
Maintenance: Periodic product inspection at the factory every 3 - 6 months.
Free: consulting on designing energy saving lighting solutions.
Free: 100% of the cost of the product trial.
Free: City shipping. HCM within 10km.
Free: Suburban shipping with purchase of more than 200 sets
Warranty: from 3 to 5 years depending on the product
Maintenance: Periodic product inspection at the factory every 3 - 6 months.
PRODUCT SPECIFICATIONS:
| PRODUC MODEL | AMBEE-LED120-XVN |
| Power | 20W |
| Input Voltage | 180 - 265 VAC/ 50 - 60Hz |
| Power Factor (PF) | >0.9 |
| Working temperature | -20°C ~ 50°C |
| CRI | >85Ra |
| CCT | 3000 - 6000K |
| Beam Angle | 120° |
| Efficacy | 120 Lm/W |
| Luminous Flux | 2.400 Lm |
| Dimension | 1230x85x80 mm (LxWxH) |
| Weight | 3.6 kg |
| Material | Die cast Aluminum |
| Led Type | SMD 2835 - Philips |
| Led Qty | 120 Pcs |
| Source Type | AMBEE |
| Life time | 50.000 h |
| Warranty | 2~5 year |
| Origin | AMBEE |
PRODUCT DIMENSIONS:
BEAM ANGLE:
ILLUMINATION DISTRIBUTION DRAWING:
