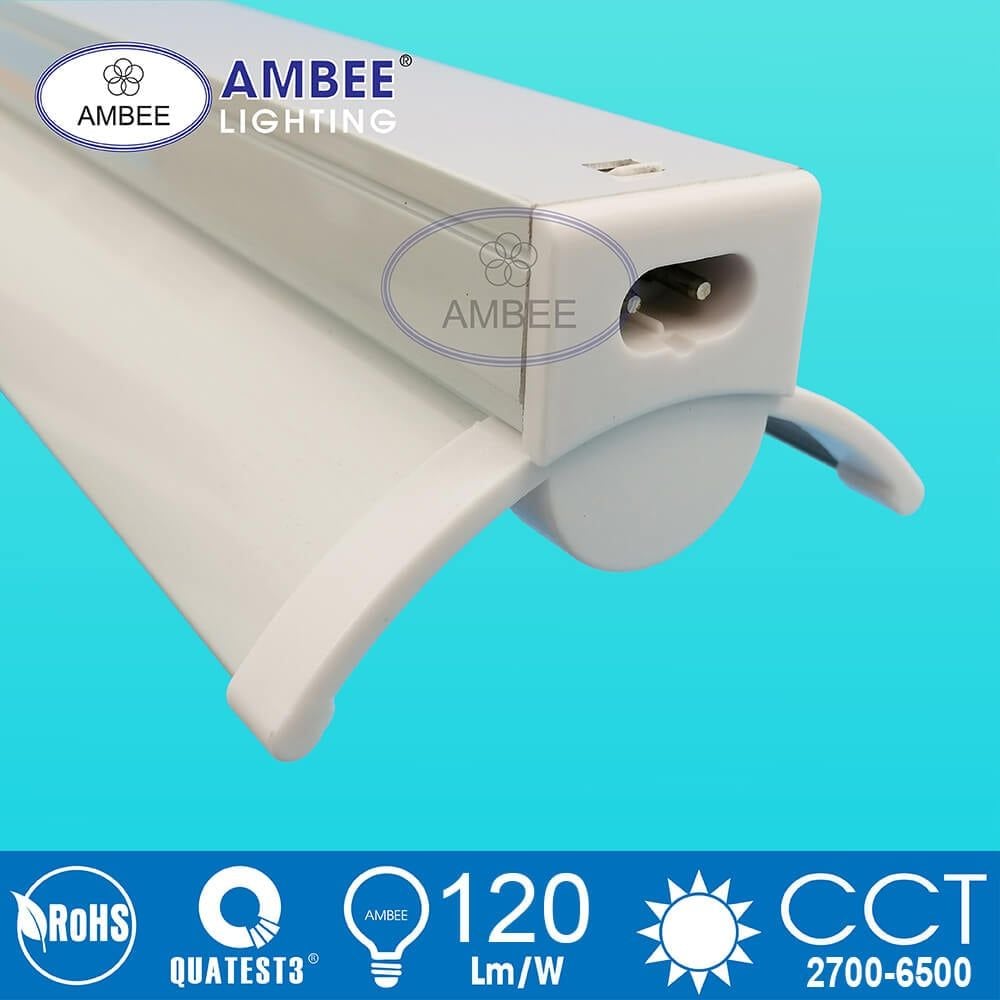

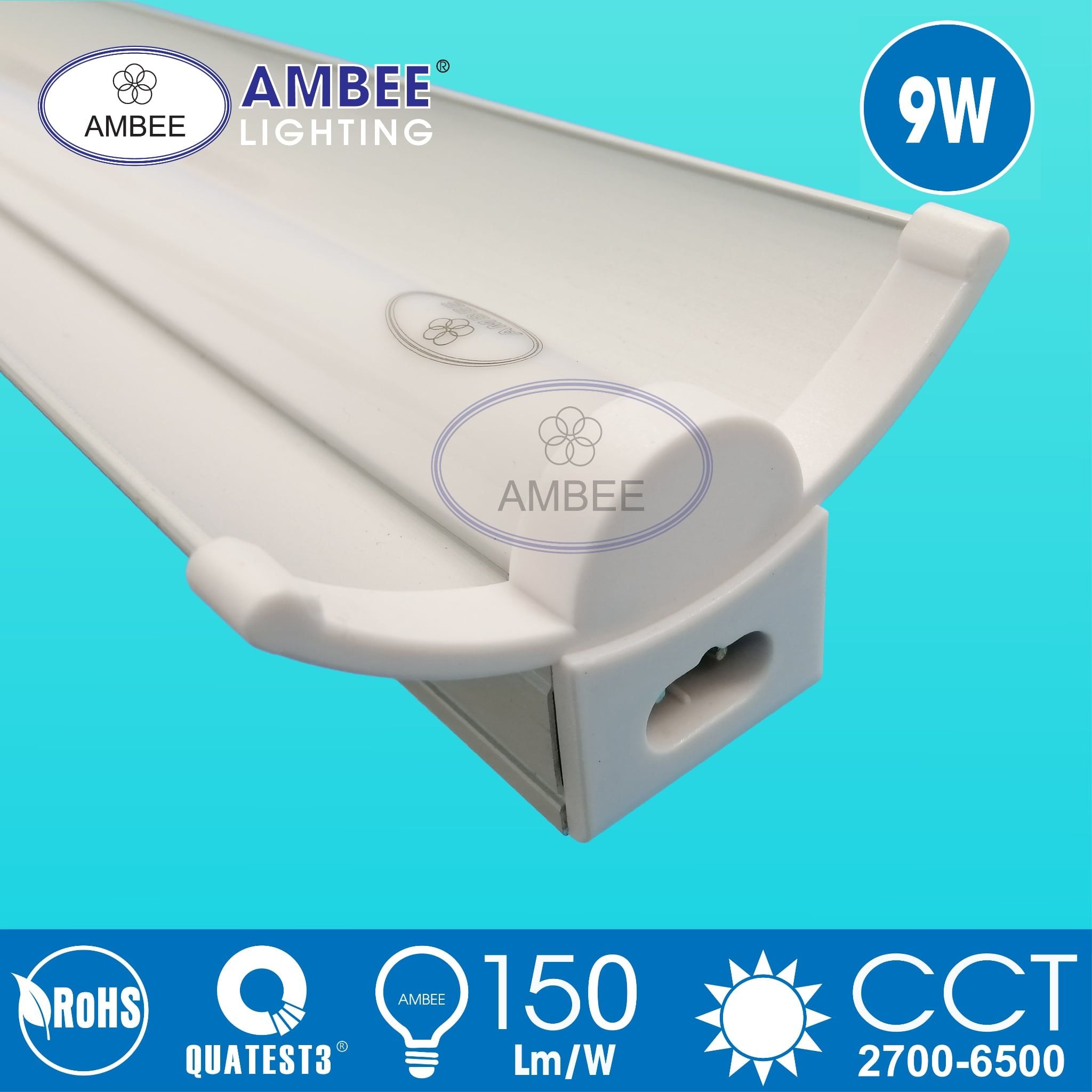

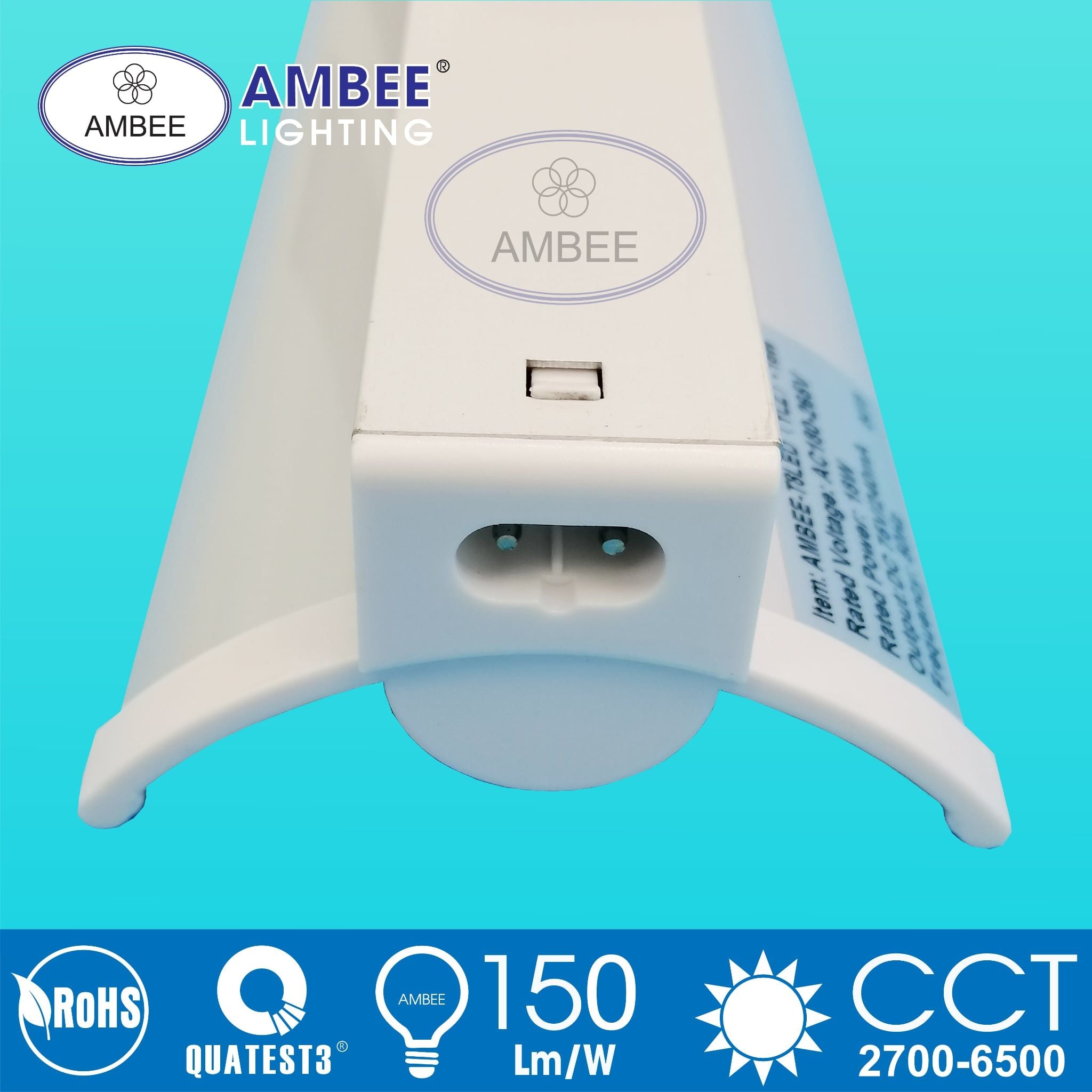

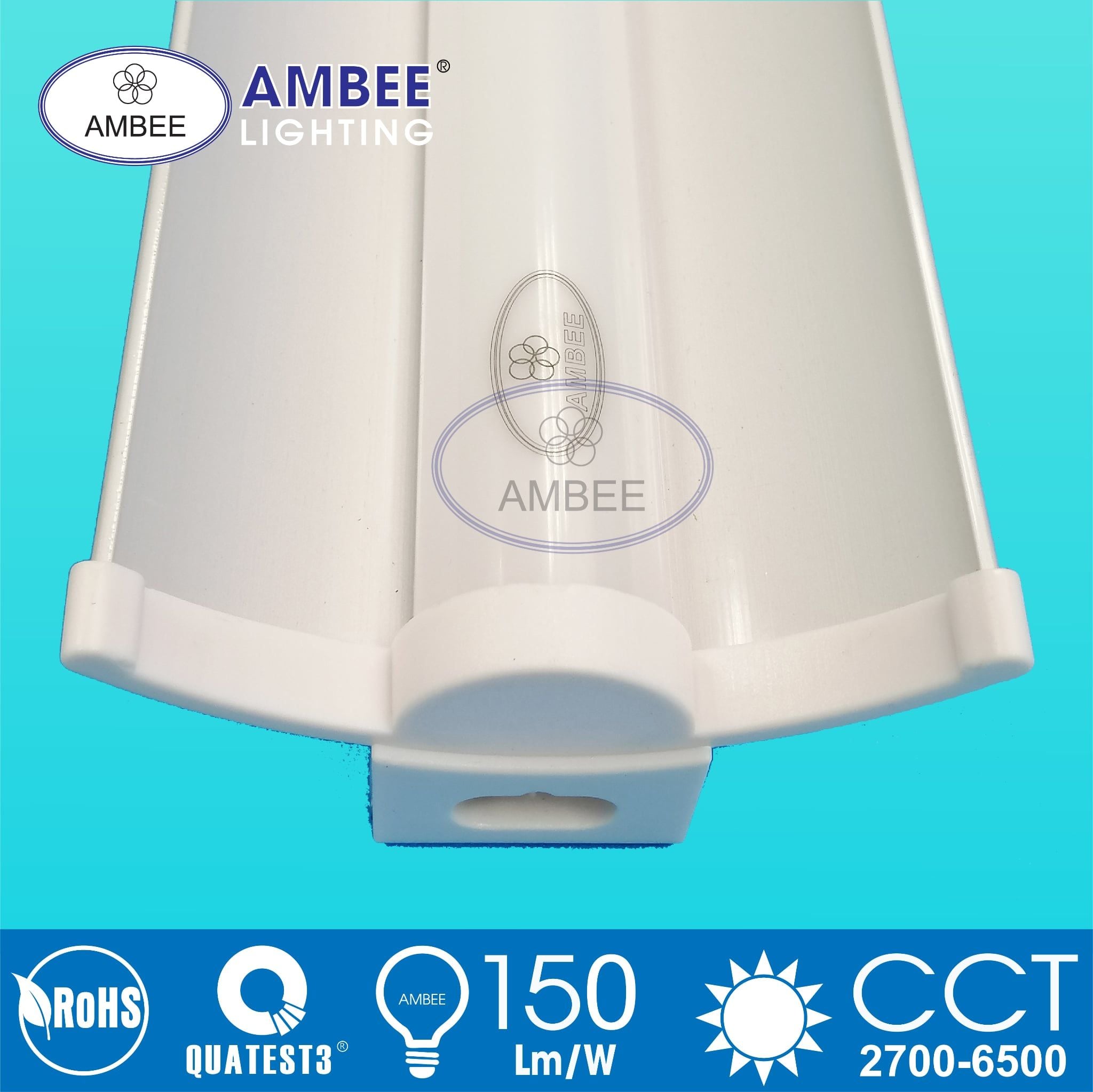

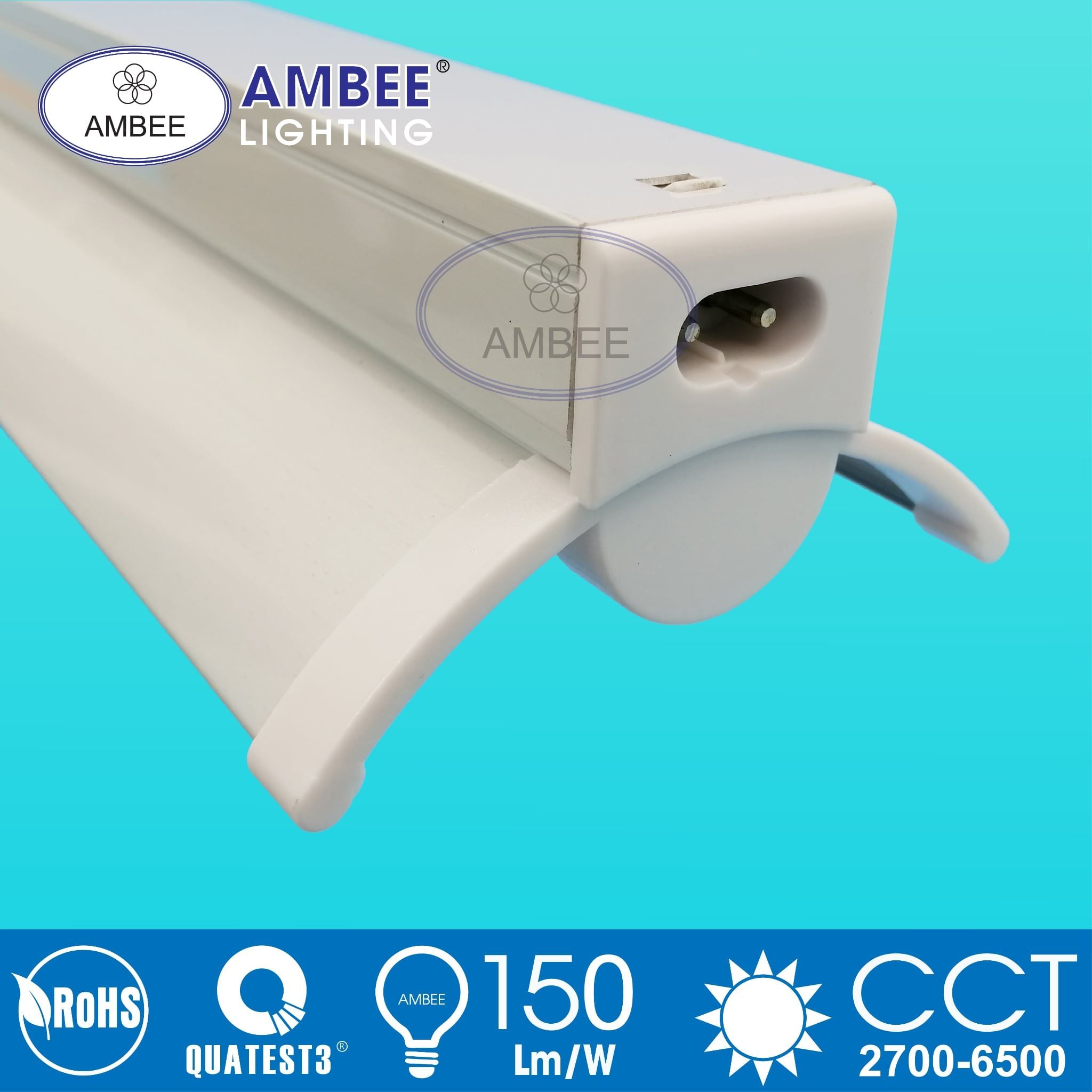

Tube LED T8 with reflector integrated 0m6 9W
Tube LED T8 with reflector integrated 0m6 9W
Tube LED T8 with reflector integrated 0m6 9W
Tube LED T8 with reflector integrated 0m6 9W

Tube LED T8 with reflector integrated 0m6 9W

Price :Contact
Trademark AMBEE
AMBEE-T8LED(YLZ)-9W

Sales policy

  • Free: consulting on designing energy saving lighting solutions.
  • Free: 100% of the cost of the product trial.
  • Free: City shipping. HCM within 10km.
  • Free: Suburban shipping with purchase of more than 200 sets
  • Warranty: from 3 to 5 years depending on the product
  • Maintenance: Periodic product inspection at the factory every 3 - 6 months.

PRODUCT SPECIFICATIONS:

 PRODUC MODELAMBEE-T8LED(YLZ)-9W
 Power9W
 Input Voltage180 - 265 VAC/ 50 - 60Hz
 Power Factor (PF)>0.9
 Working temperature-20°C ~ 50°C
 CRI>85Ra
 CCT2700 - 6000K
 Beam Angle120°
 Efficacy120 Lm/W
 Luminous Flux1.080 Lm
 Dimension600x83x43 mm (LxWxH)
 Weight0.3 kg
 MaterialAluminum & Polycarbonat Cocver
 Led TypeSMD 2835 - Philips
 Led Qty48 Pcs
 Source TypeAMBEE
 Life time50.000 h
 Warranty2~5 year
 OriginAMBEE

PRODUCT DIMENSIONS:

 BEAM ANGLE:

ILLUMINATION DISTRIBUTION DRAWING:
