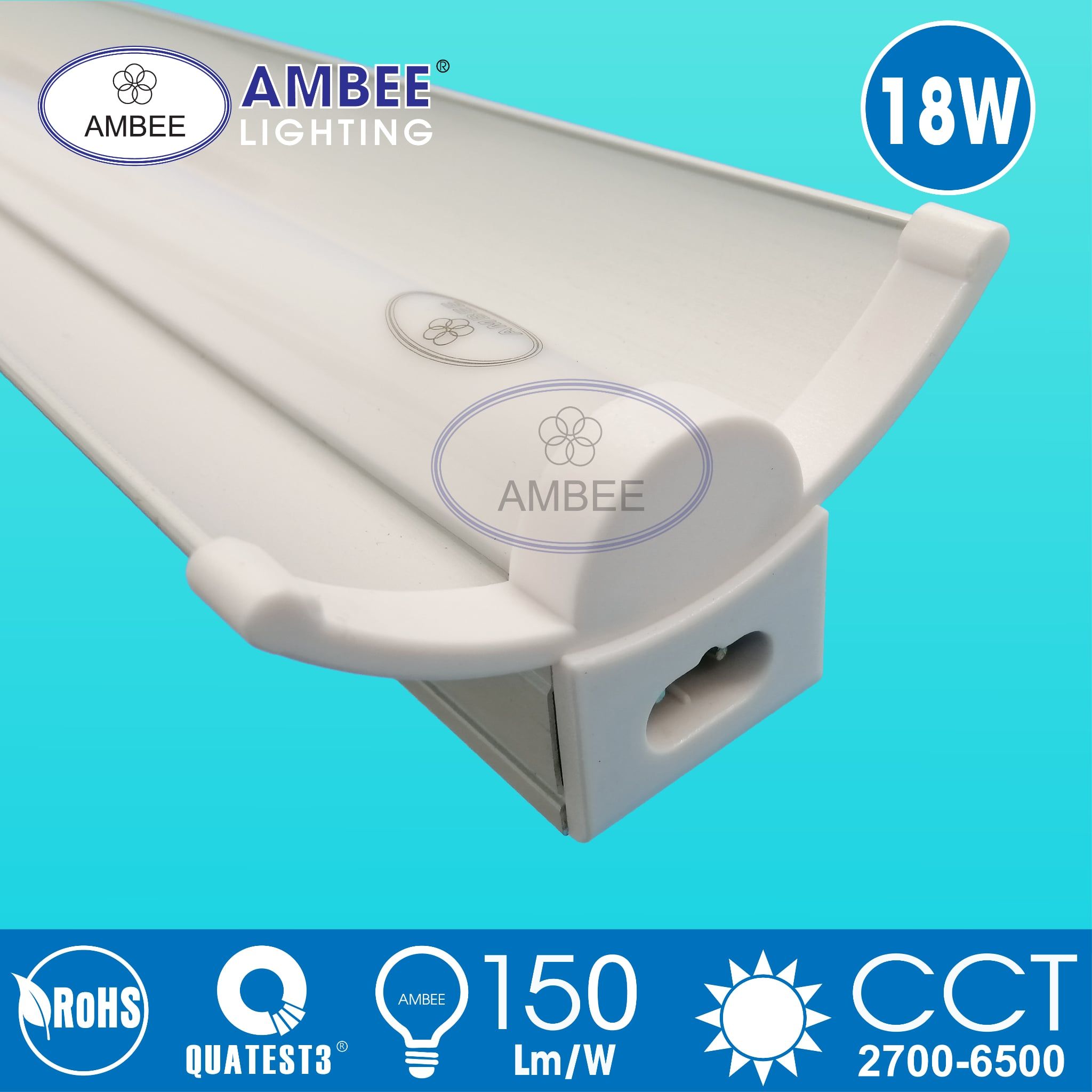

Tube LED T8 with reflector integrated 1m2/18W
- Free: consulting on designing energy saving lighting solutions.
- Free: 100% of the cost of the product trial.
- Free: City shipping. HCM within 10km.
- Free: Suburban shipping with purchase of more than 200 sets
- Warranty: from 3 to 5 years depending on the product
- Maintenance: Periodic product inspection at the factory every 3 - 6 months.
85-265V / 50-60Hz
110-120Lm / W
2835 SMD high performance
Number of LED chips
96 LED chips
Oxidized aluminum body, PC cover, integrated large chute
* Product Specification:
- LED Chip : Two LEDs use 2835 SMD LED chip, with LED chip number up to 48 chip (for 0.6m type) and 96 chip (for 1.2m type). 9W and 18W.
- Power supply : This is the second most important part of the LED, it makes the lamp work smoothly, no interference, the frequency of the light emitted or the noise is also due to the source. In addition, the life of the LED chip is also dependent on the power supply. Therefore, in the market today, the same lamp pattern, but the price and quality are different. The main purpose of the power supply is to convert the power consumption of 220V (alternating current) into 12VDC or 24VDC (one-way) power supply to the LED chip.
- Radiator sheath : The third important part is the sheath. Aluminum sheathed aluminum sheathing is good for heat conduction, so the manufacturer uses aluminum for heat dissipation for most industries such as: When the lamp is operating, it generates a large amount of heat. In order to extend the life of the lamp, the manufacturer must use an aluminum layer to allow the heat to emit rapidly through the aluminum layer and spread to the side. In addition, the wind in the air cooled this aluminum layer and help to extend the life of the LED chip. There are many types of LED lamps in the market, with different models and materials such as aluminum, plastic, glass ... and the price of two types of plastic and glass is very low. Part of the cost of these materials is inexpensive and the product life cycle is short (life expectancy is low) => the selling price varies from 40,000 to 80,000 per tree. In continuous light and in industrial environment, these lamps are very light, brightness decreases after 6 months and continuous fire after 1-2 years.
- Mica cap: Mica cap of the lamp has two types (lid and opaque cover). AMBEE has both types to meet different customer needs. Its purpose is to protect the LED chip from dust, water and insects entering the lamp. The opaque mica cover also helps to reduce the glare of the LED chip when the eye is looking directly (which causes pain and eyestrain). Separate internal mica for mounting in remote and high positions to help optimize the brightness for the working environment.

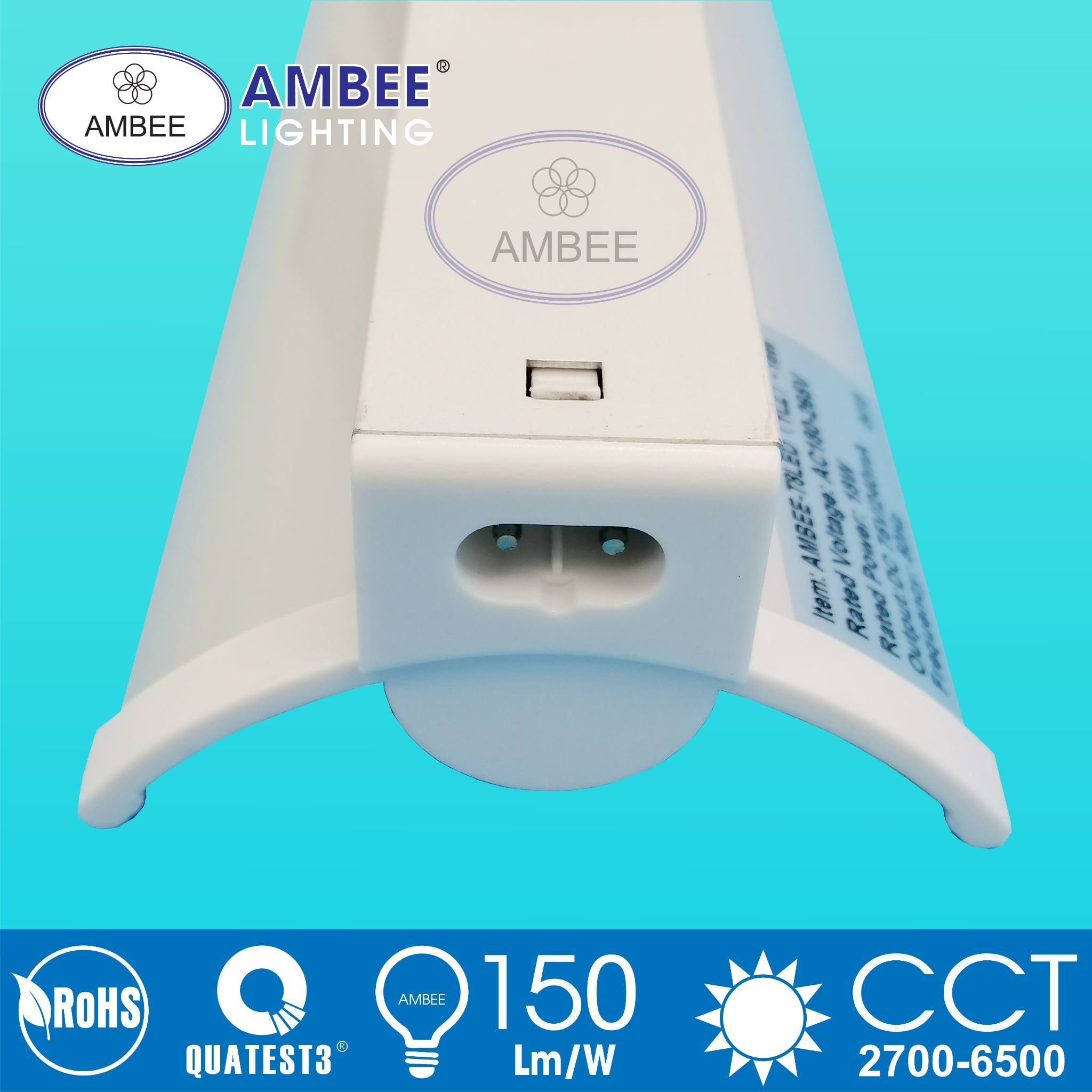

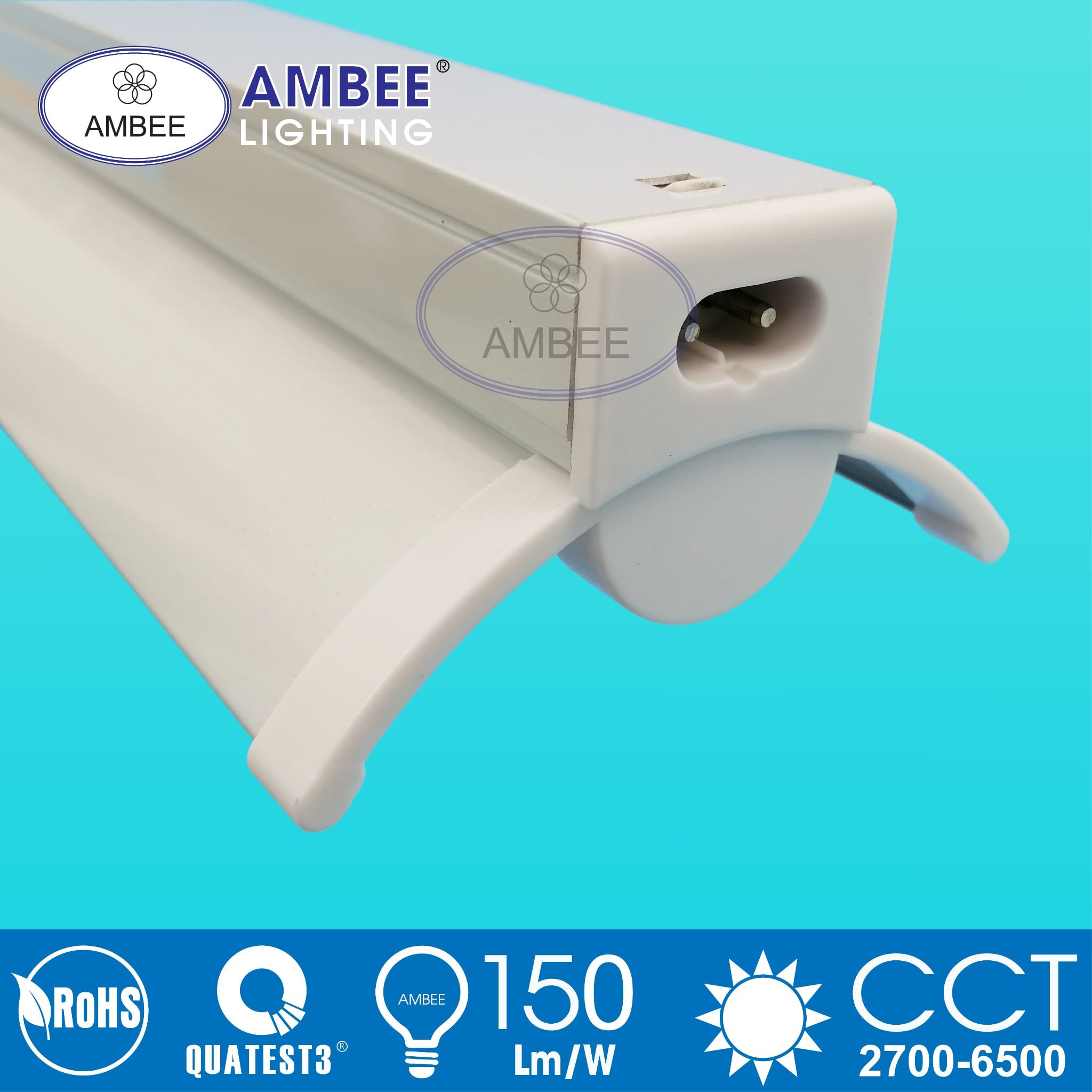

- Power supply head : The headlamp is designed to connect at both ends, one end can be powered and one end can be connected to the other.

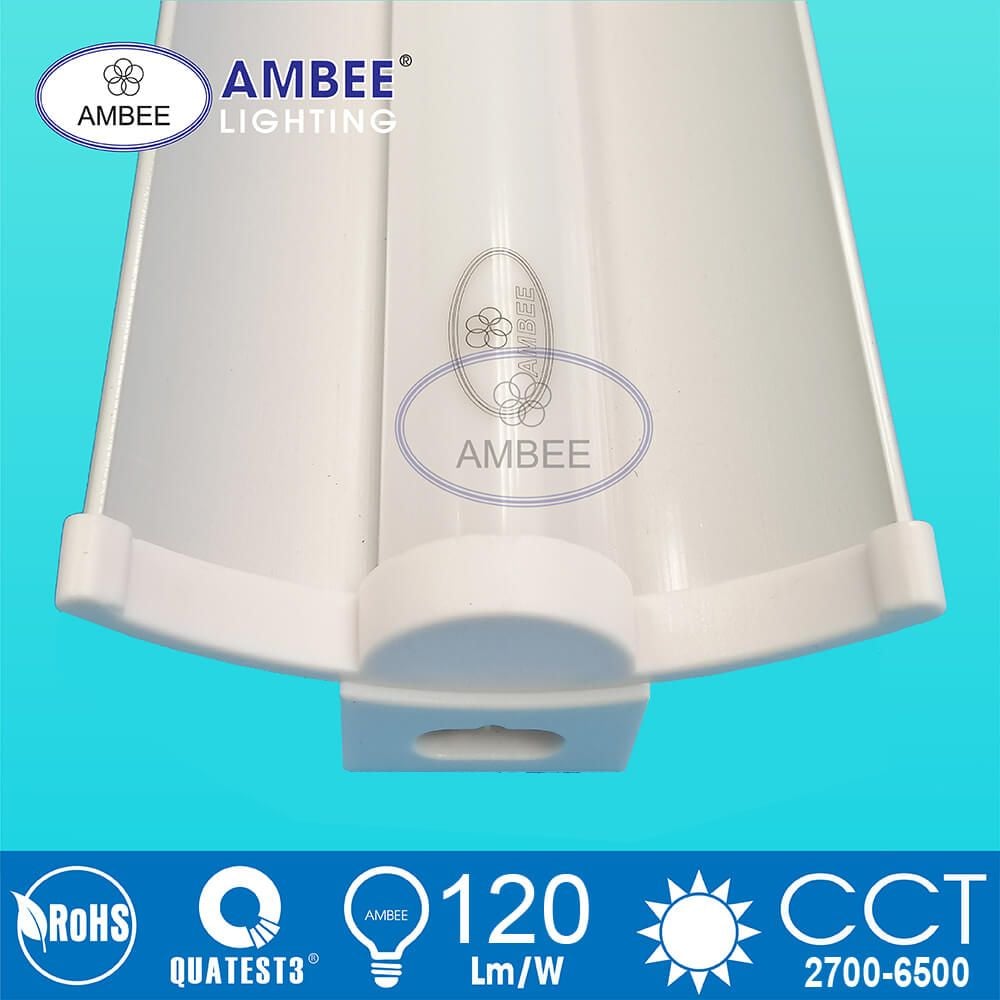

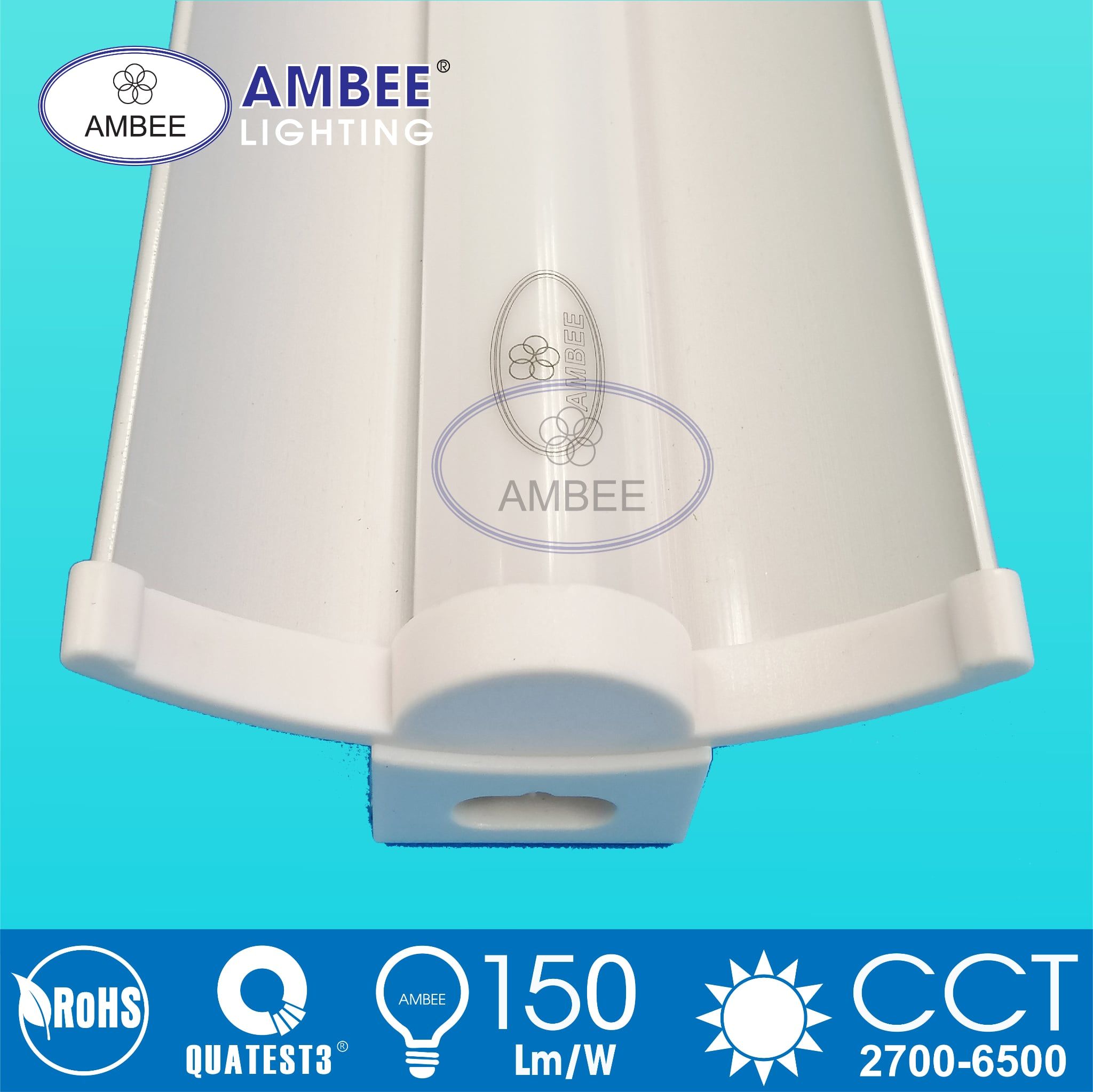

Integrated T8 LED Tube Light is made into a solid, not a ball and a chute. Although the shape is no longer circular, the design of the lamp is similar to that of the T8 LED bulb.
- The body is made of lightweight aluminum oxide, combined with a mica cap to form a neatly compact block. Incorporated into reflective lenses to improve lighting efficiency.
- This lamp has a very special design and is very convenient for the user. When we need continuous lighting, we can connect the light bulbs together with a convenient serial jack.
* Advantages and Benefits LED T8 Tube AMBEE:
- The lighting industry has spent more than 120 years developing from incandescent bulbs to fluorescent bulbs of all kinds and then for the first simple display leds. In light of the growing trend of technology and towards being friendly and protecting the environment, the advent of LED lighting technology is indeed revolutionizing today's lighting technology. Capturing the latest technological trends in the lighting industry, AMBEE has launched the T8 LED Tube Light Series with 0.6m / 9W Diameter Type using high-performance SMD 2835 chips for superior performance. High brightness and longevity.
- The first point to mention is the ability to save electricity, AMBEE type led lamp saves up to 60% compared to traditional fluorescent tubes. AMBEE type leds have a power output of only 9W while traditional T8 / T10 fluorescent lamps (18W or 20W). This is the most important benefit that many people care about, it helps households, factories ... save tens, hundreds of million per month.
- Next up is the AMBEE LED life of up to 50,000 hours. Meanwhile, traditional fluorescent lamps T8 / T10 life span from 6,000-8,000 hours. LED tubes are 5 times longer than fluorescent T8 / T10 lamps. This is great because it helps families and factories reduce the cost of reinvestment in the future. Reduce invisible costs (replacement, repair ...).
- The third benefit of the AMBEE type LEDs is that it's many times brighter than conventional lamps. The brightness of the lamps makes it possible for households, restaurants, companies, factories to reduce the number of lamps in the past. For example, in the past, my house had to attach two T10 lamps (20W / shade) to the guest room, now only two 9W LED lamps matched each other, only four lights, but the brightness was equal to 4 20W old lamp. If used in garment factories or leather shoes, the company can save a lot of electricity and also reduce the amount of light.
Besides, the light of the LED light emits no harm to the eyes and does not cause eyestrain. You can see the phone switches to the camera mode and then close the LED bulb and the fluorescent light will see on the screen light on one side flashing, one side is very smooth. This problem is not seen by the naked eye, but with the aid of a newly discovered device.
- Ambee tube lamps do not emit ultraviolet rays, ultraviolet rays and light materials that are reusable, friendly and environmentally friendly.
* Application of integrated T8 LED Tube with AMBEE:
LED integrated T8 tube with AMBEE cover suitable for use in dry areas, limited outdoor use or where high humidity.
>>> This is a specialized type of products are widely used in the factories factory side:
- Leather shoes and garment factory.
- Electronic factory, food production ...
