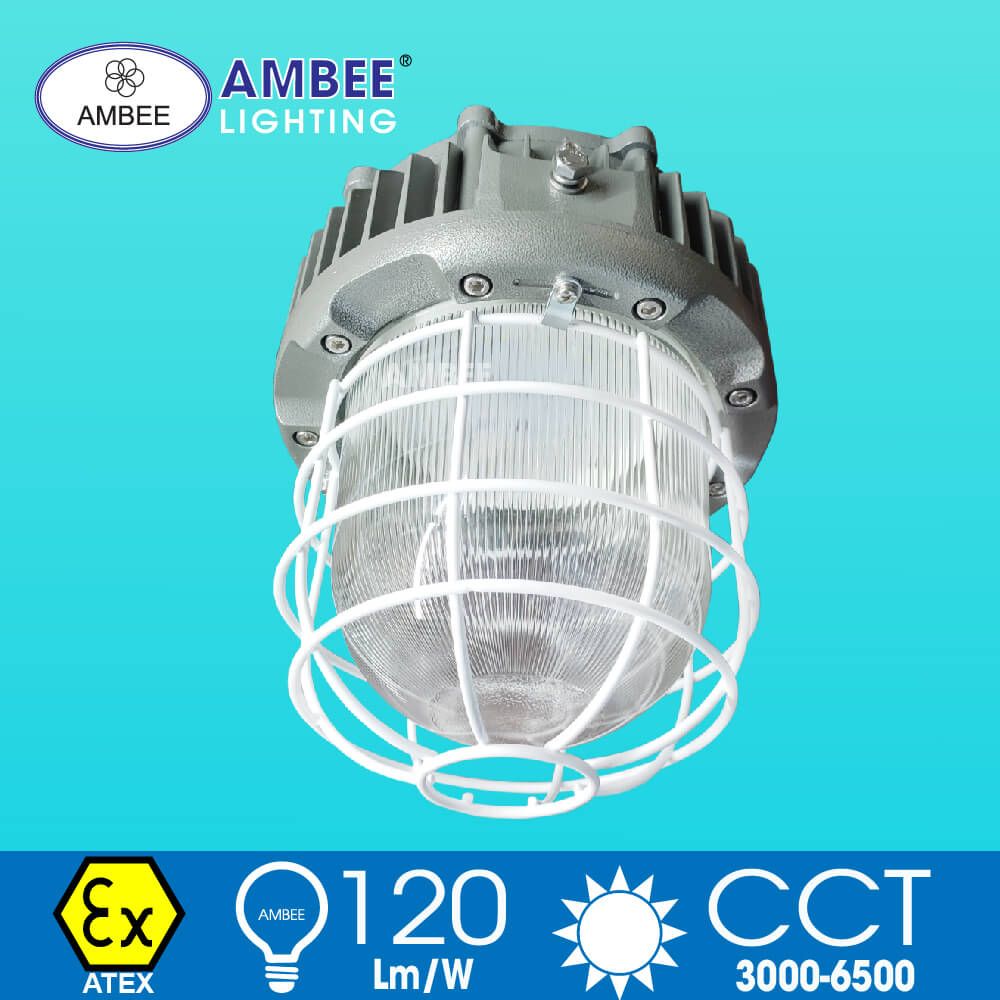

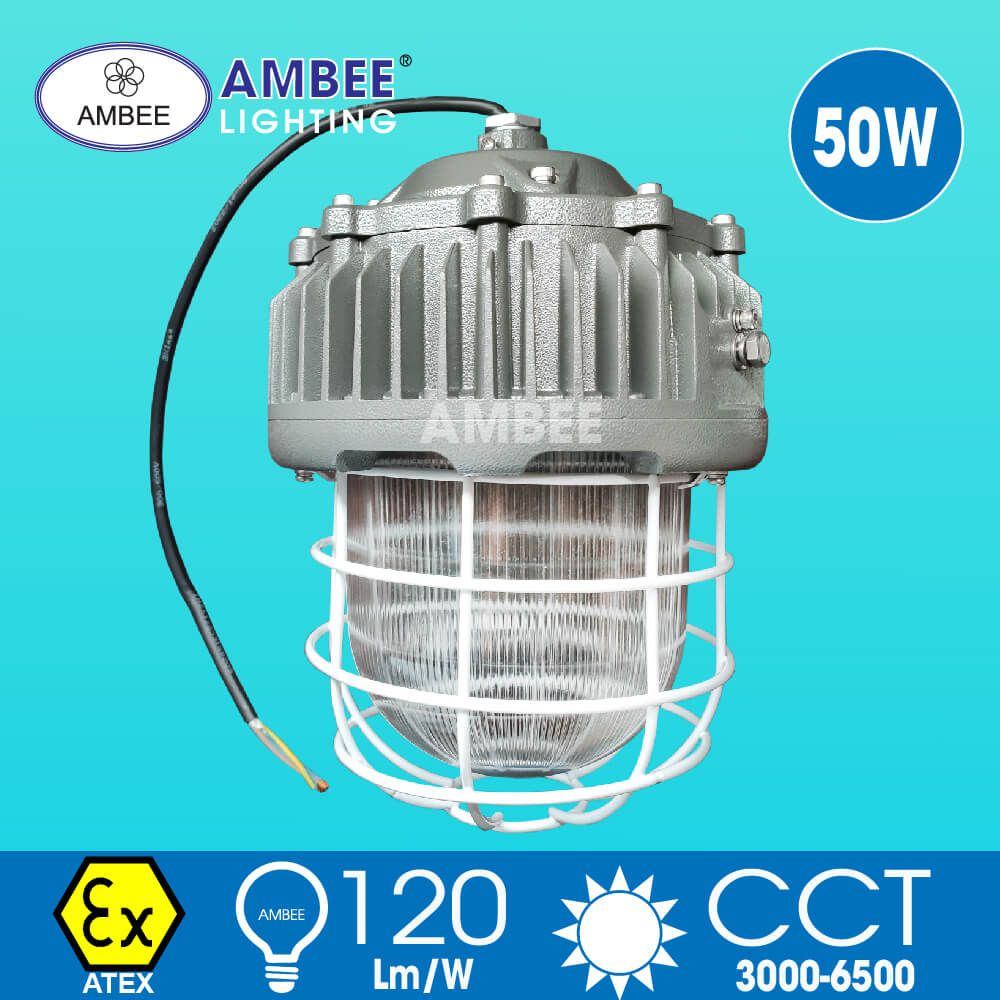

Explosion-proof Led Lamp F8238 50W
Contact
Sales policy
-
Free: consulting on designing energy saving lighting solutions.
-
Free: 100% of the cost of the product trial.
-
Free: City shipping. HCM within 10km.
-
Free: Suburban shipping with purchase of more than 200 sets
-
Warranty: from 3 to 5 years depending on the product
-
Maintenance: Periodic product inspection at the factory every 3 - 6 months.
Free: consulting on designing energy saving lighting solutions.
Free: 100% of the cost of the product trial.
Free: City shipping. HCM within 10km.
Free: Suburban shipping with purchase of more than 200 sets
Warranty: from 3 to 5 years depending on the product
Maintenance: Periodic product inspection at the factory every 3 - 6 months.
PRODUCT SPECIFICATIONS:
| PRODUC MODEL | AMBEE-F8238-50W |
| Power | 50W |
| Input Voltage | 100 - 265V/ 50 - 60Hz |
| Power Factor (PF) | >0.95 |
| Working temperature | -20°C ~ 50°C |
| CRI | >80Ra |
| CCT | 3000 - 6500K |
| Beam Angle | 141.9° |
| Efficacy | 120 Lm/W |
| Luminous Flux | 6.000 Lm |
| Dimension | Φ230x314 mm (DxH) |
| Weight | 6.4 kg |
| Material | Die cast aluminum |
| Anticorrosion grade | WF2 |
| Protection level | IP66 |
| Explosion proof grade | Exd IIC T6 Gb |
| Led Type | SMD 3030 - Cree |
| Source Type | Meanwell/ Osram/ Moso/ AMBEE |
| Life time | 50.000 h |
| Warranty | 2~5 year |
| Origin | AMBEE |
PRODUCT DIMENSIONS:
BEAM ANGLE:
ILLUMINATION DISTRIBUTION DRAWING:
