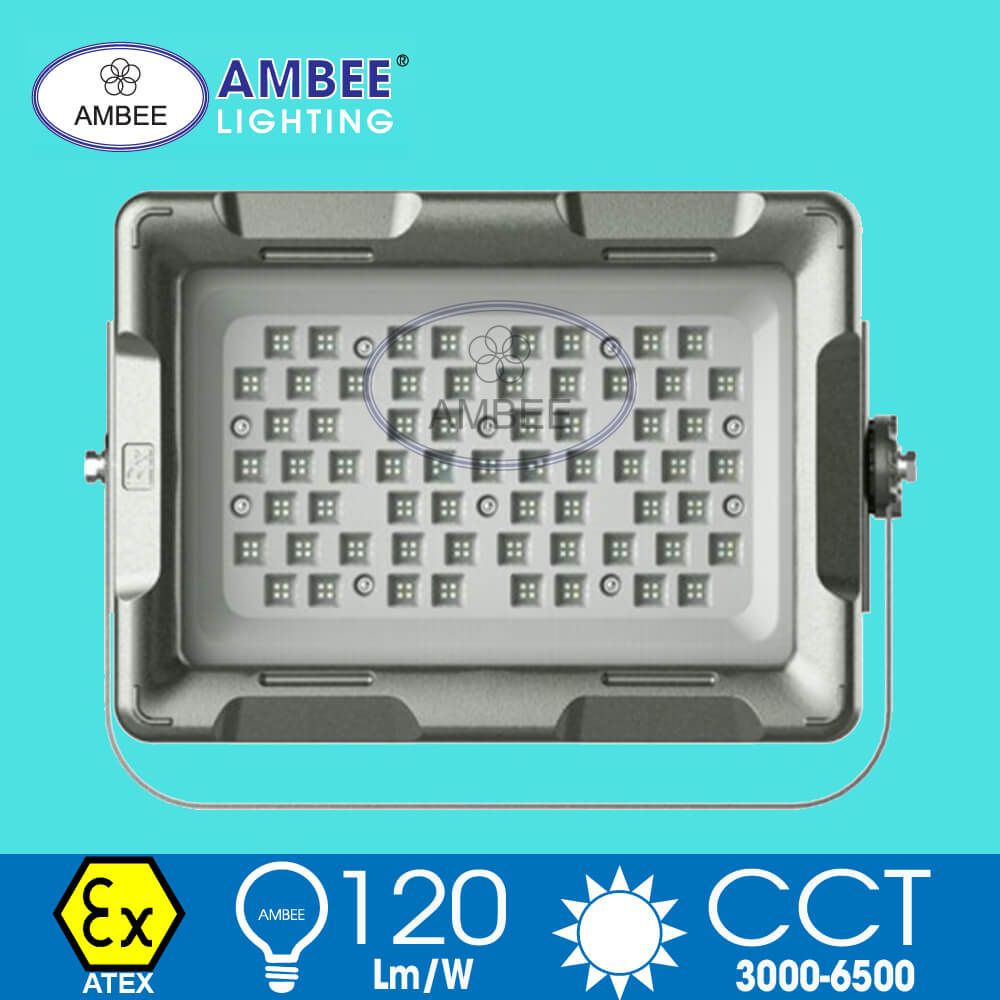

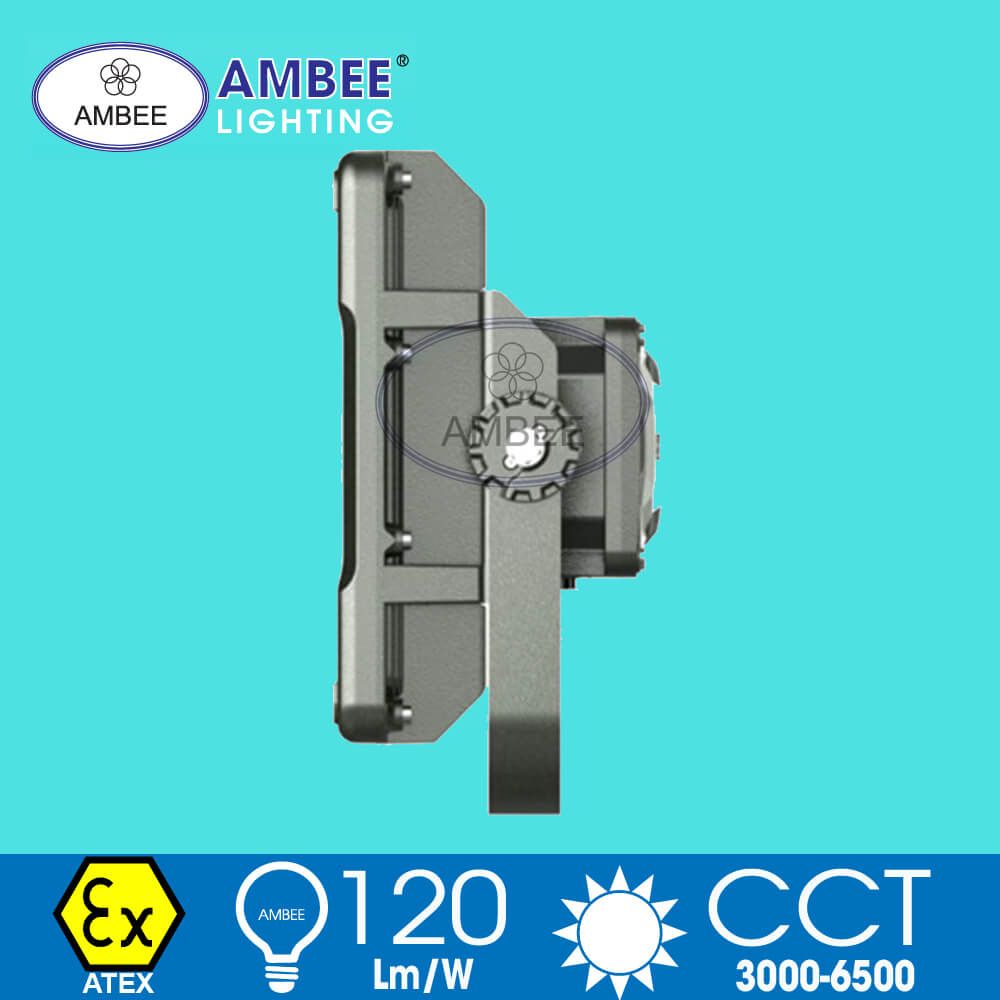

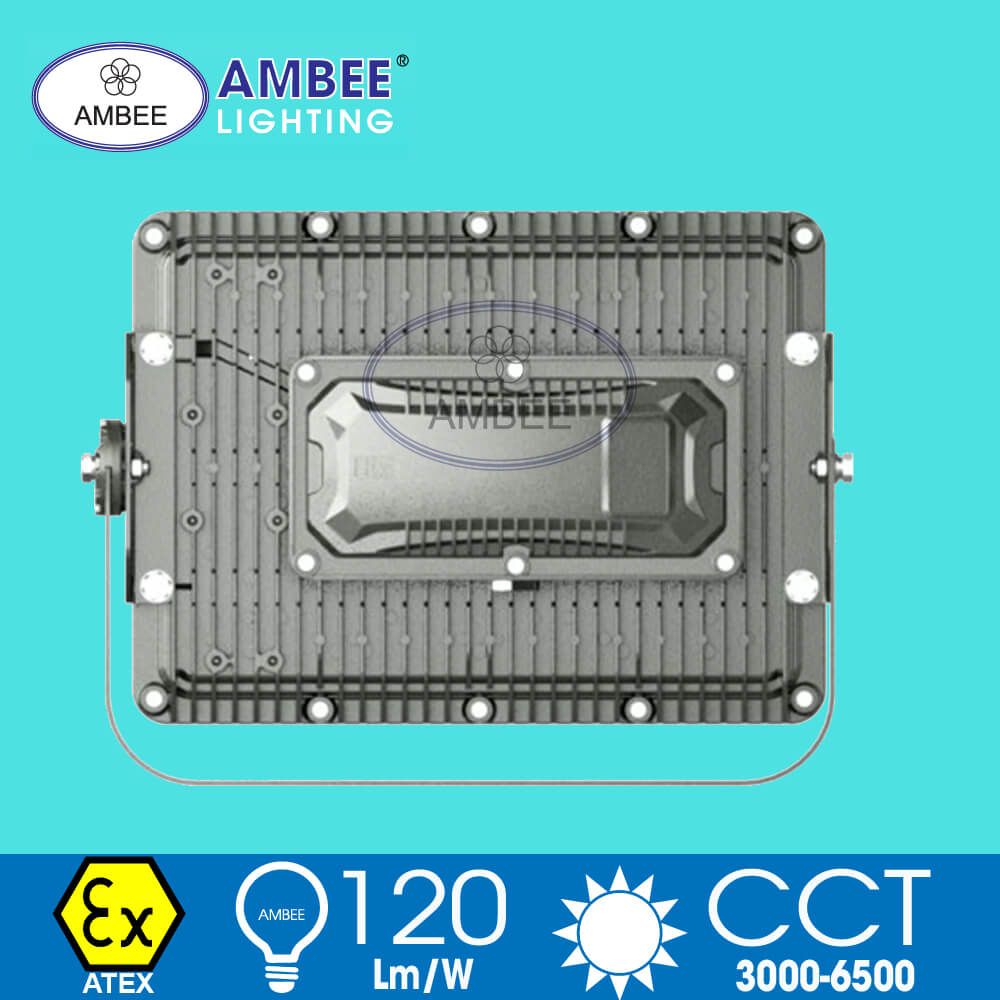

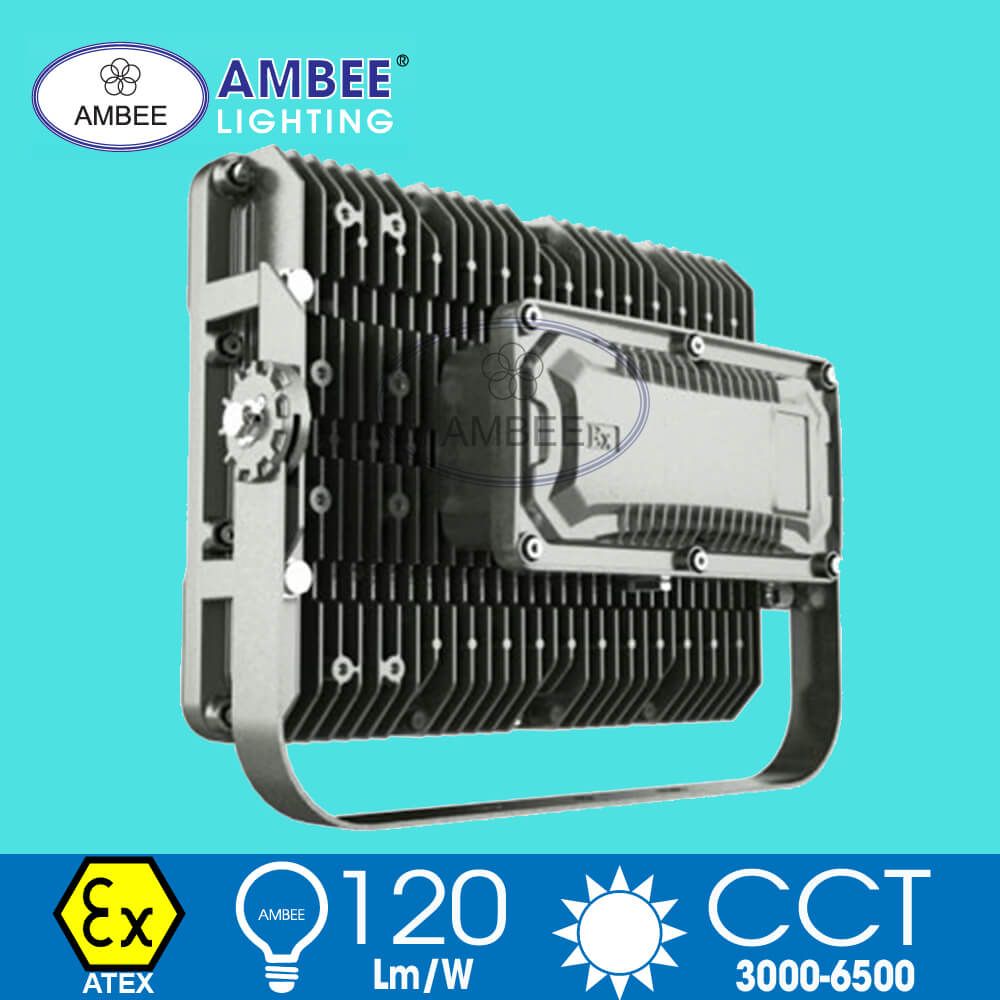

Explosion-proof Led Lamp F8260 220W
Explosion-proof Led Lamp F8260 220W
Explosion-proof Led Lamp F8260 220W
Explosion-proof Led Lamp F8260 220W
Explosion-proof Led Lamp F8260 220W
Explosion-proof Led Lamp F8260 220W

Explosion-proof Led Lamp F8260 220W

Price :Contact
Trademark AMBEE
AMBEE-F8260-220W

Sales policy

  • Free: consulting on designing energy saving lighting solutions.
  • Free: 100% of the cost of the product trial.
  • Free: City shipping. HCM within 10km.
  • Free: Suburban shipping with purchase of more than 200 sets
  • Warranty: from 3 to 5 years depending on the product
  • Maintenance: Periodic product inspection at the factory every 3 - 6 months.

PRODUCT SPECIFICATIONS:

 PRODUC MODELAMBEE-F8260-220W
 Power220W
 Input Voltage100 - 265V/ 50 - 60Hz
 Power Factor (PF)>0.95
 Working temperature-20°C ~ 50°C
 CRI>80Ra
 CCT3000 - 6500K
 Beam Angle90°/ 100.7°/ 110°
 Efficacy120 Lm/W
 Luminous Flux26.400 Lm
 Dimension472x315x175 mm (LxWxH)
 Weight12.5 kg
 MaterialDie cast aluminum
 Anticorrosion gradeWF2
 Protection levelIP66
 Explosion proof gradeExd emb IIC T6
 Led TypeSMD 3030 - Cree
 Source TypeMeanwell/ Osram/ Moso/ AMBEE
 Life time50.000 h
 Warranty2~5 year
 OriginAMBEE

PRODUCT DIMENSIONS:

 BEAM ANGLE:

ILLUMINATION DISTRIBUTION DRAWING:
