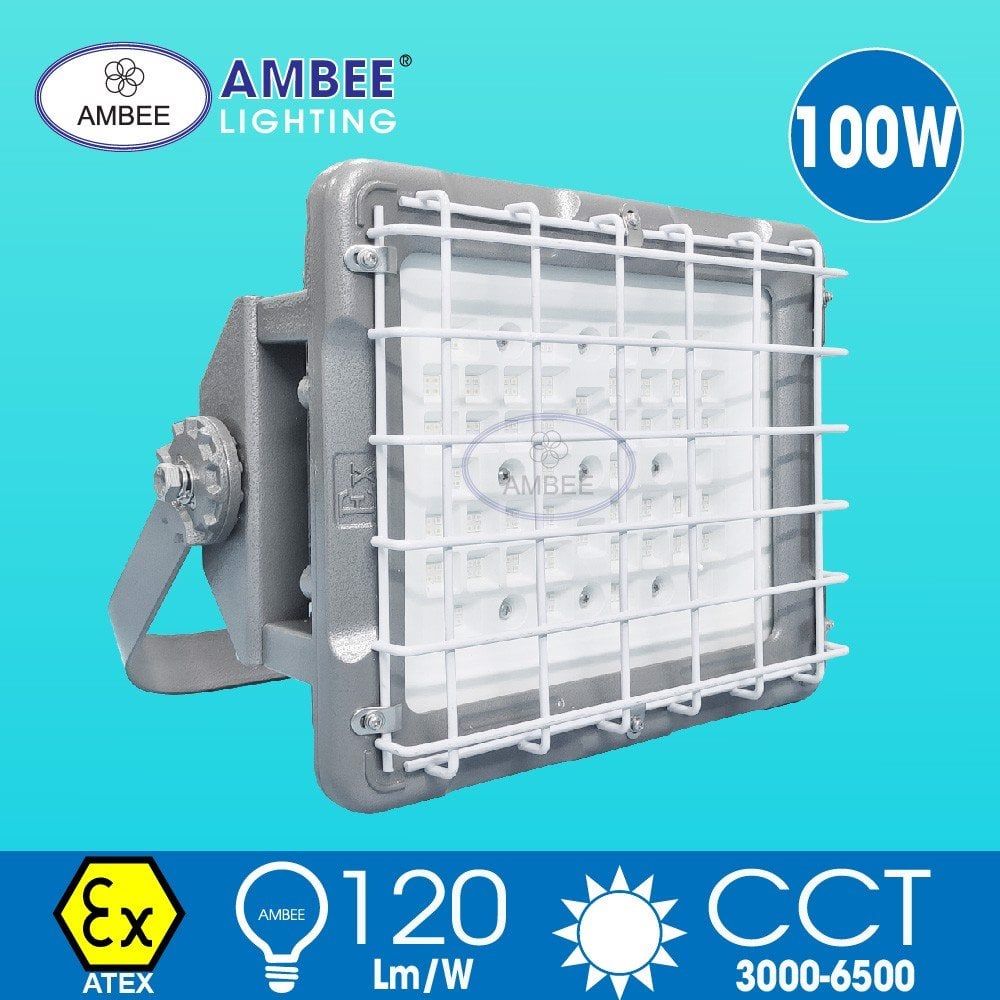

Explosion-proof Led Lamp F8260 100W
Contact
Sales policy
- Free: consulting on designing energy saving lighting solutions.
- Free: 100% of the cost of the product trial.
- Free: City shipping. HCM within 10km.
- Free: Suburban shipping with purchase of more than 200 sets
- Warranty: from 3 to 5 years depending on the product
- Maintenance: Periodic product inspection at the factory every 3 - 6 months.
PRODUCT SPECIFICATIONS:
PRODUC MODEL | AMBEE-F8260-100W |
Power | 100W |
Input Voltage | 100 - 265V/ 50 - 60Hz |
Power Factor (PF) | >0.95 |
Working temperature | -20°C ~ 50°C |
CRI | >80Ra |
CCT | 3000 - 6500K |
Beam Angle | 90°/ 100.7°/ 110° |
Efficacy | 120 Lm/W |
Luminous Flux | 12.000 Lm |
Dimension | 374x276x171 mm (LxWxH) |
Weight | 8.9 kg |
Material | Die cast aluminum |
Anticorrosion grade | WF2 |
Protection level | IP66 |
Explosion proof grade | Exd emb IIC T6 |
Led Type | SMD 3030 - Cree |
Source Type | Meanwell/ Osram/ Moso/ AMBEE |
Life time | 50.000 h |
Warranty | 2~5 year |
Origin | AMBEE |
PRODUCT DIMENSIONS:
BEAM ANGLE:
ILLUMINATION DISTRIBUTION DRAWING:
