Led Highbay UF140 100W
Contact
Sales policy
-
Free: consulting on designing energy saving lighting solutions.
-
Free: 100% of the cost of the product trial.
-
Free: City shipping. HCM within 10km.
-
Free: Suburban shipping with purchase of more than 200 sets
-
Warranty: from 3 to 5 years depending on the product
-
Maintenance: Periodic product inspection at the factory every 3 - 6 months.
Free: consulting on designing energy saving lighting solutions.
Free: 100% of the cost of the product trial.
Free: City shipping. HCM within 10km.
Free: Suburban shipping with purchase of more than 200 sets
Warranty: from 3 to 5 years depending on the product
Maintenance: Periodic product inspection at the factory every 3 - 6 months.
PRODUCT SPECIFICATIONS:
| PRODUC MODEL | AMBEE-UF140-100W |
| Power | 100W |
| Input Voltage | 100 - 277 VAC/ 50 - 60Hz |
| Power Factor (PF) | >0.9 |
| Working temperature | -30°C ~ 45°C |
| CRI | >80Ra |
| CCT | 3000 - 6500K |
| Beam Angle | 60°/ 90°/ 120° |
| Efficacy | 140 Lm/W ±5% |
| Luminuos Lux | 14.000 Lm ±5% |
| Dimension | Φ262x153.5 mm (DxH) |
| Weight | 1.7 kg |
| Material | Die cast aluminum |
| Protection level | IP66 |
| Led Type | SMD 2835 - Bridgelux |
| Source Type | ZHPOWR (Zhihe) |
| Life time | 50.000 h |
| Warranty | 2~3 year |
| Brand | AMBEE-Viet Nam |
PRODUCT DIMENSIONS:
BEAM ANGLE:

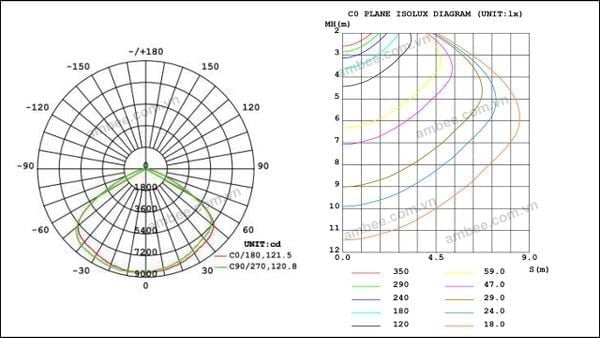

ILLUMINATION DISTRIBUTION DRAWING:
