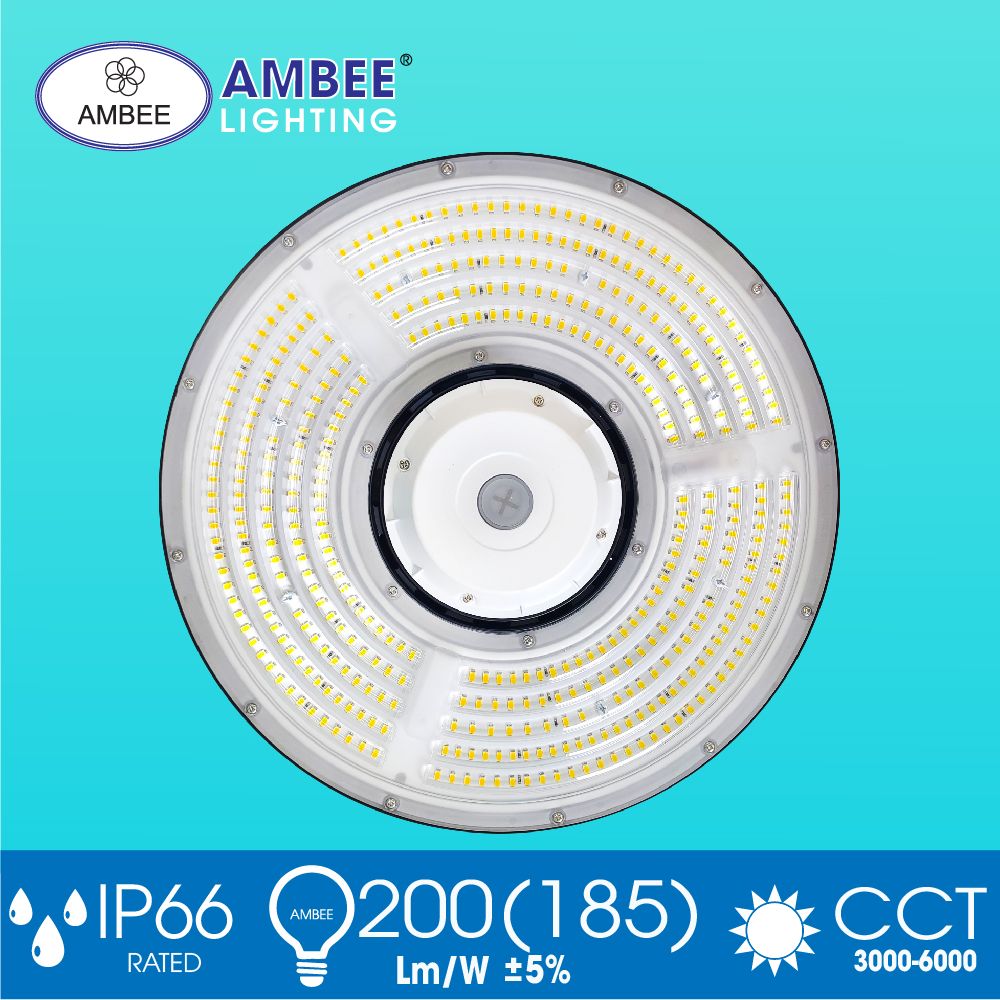

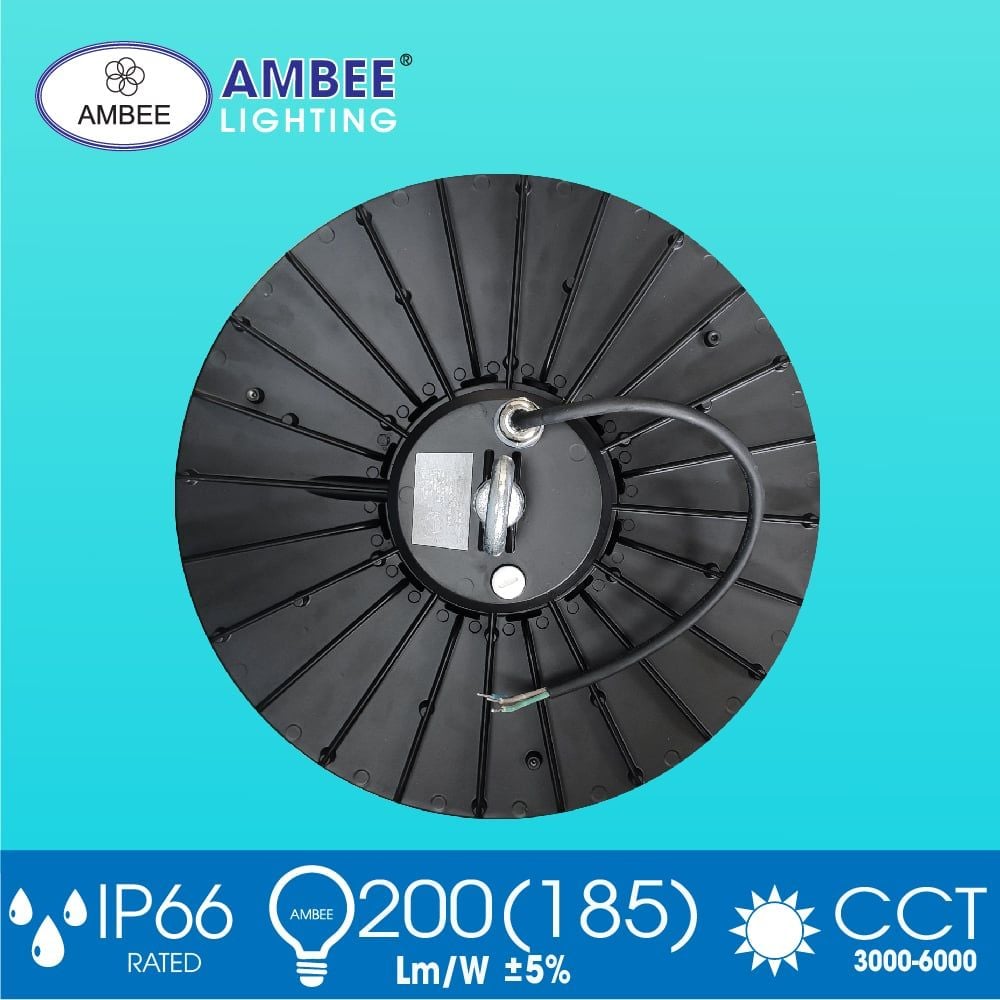

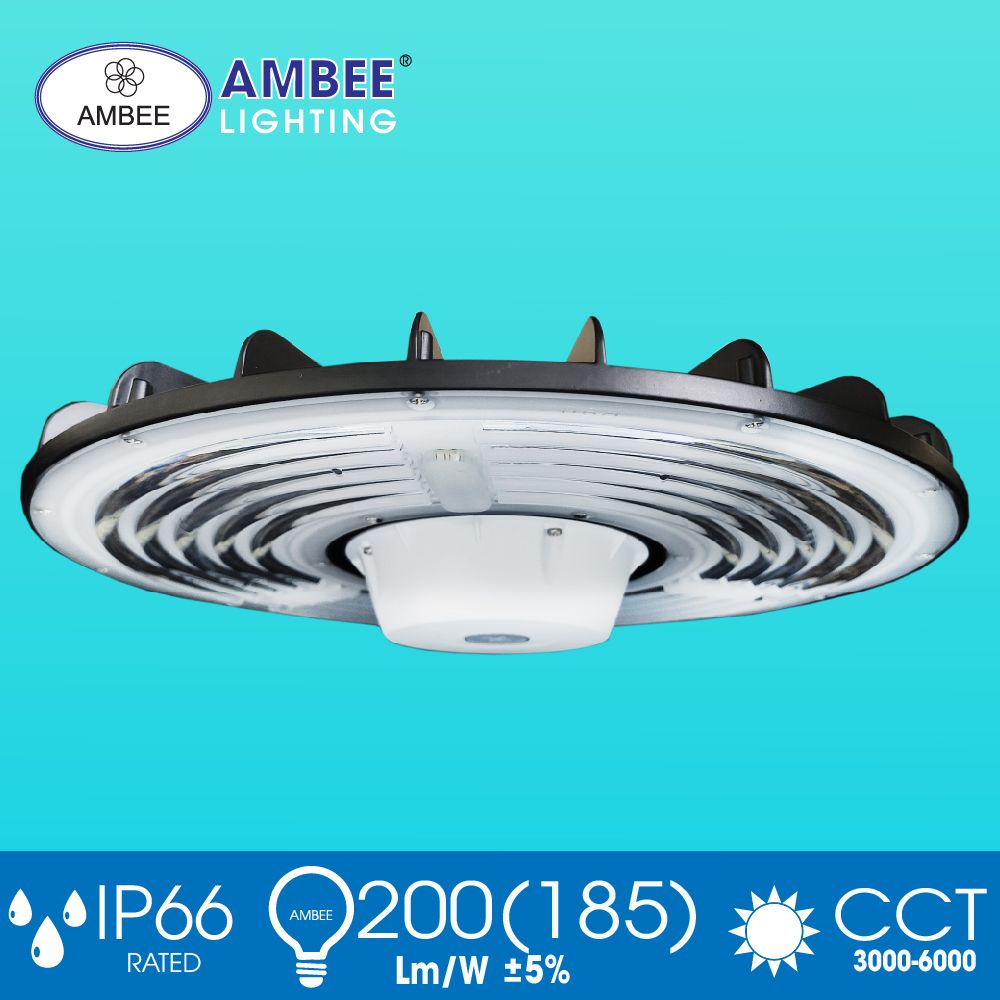

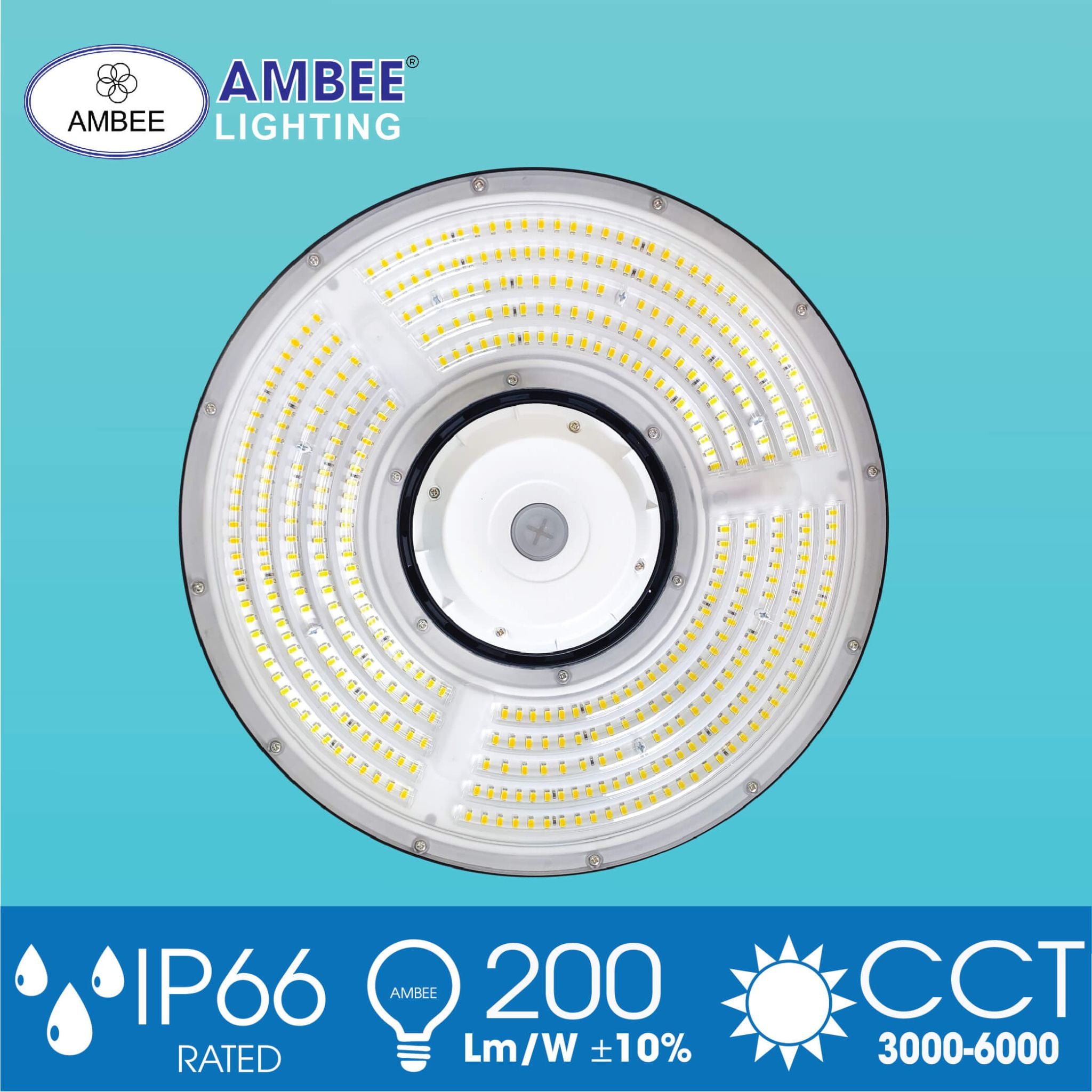

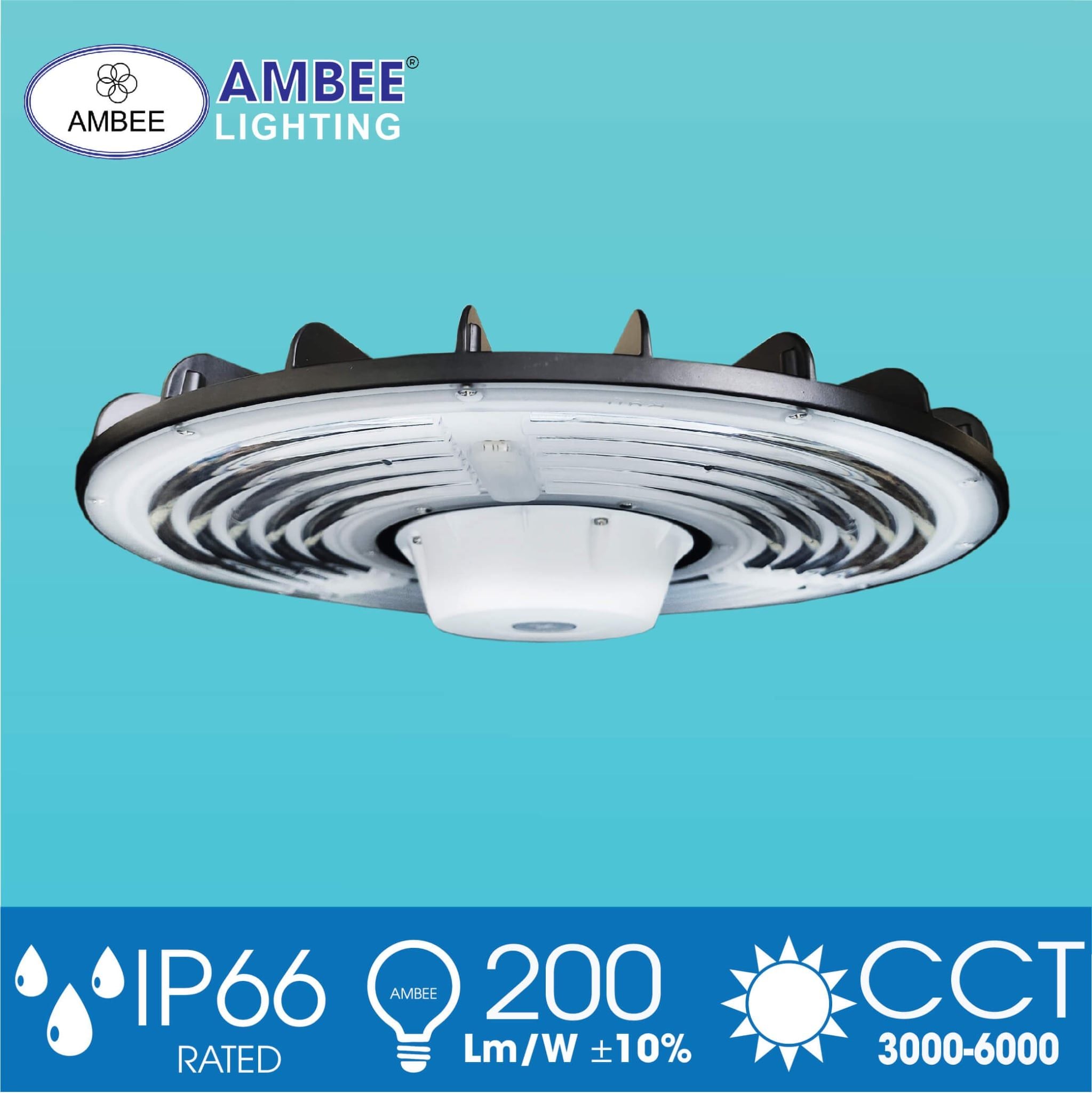

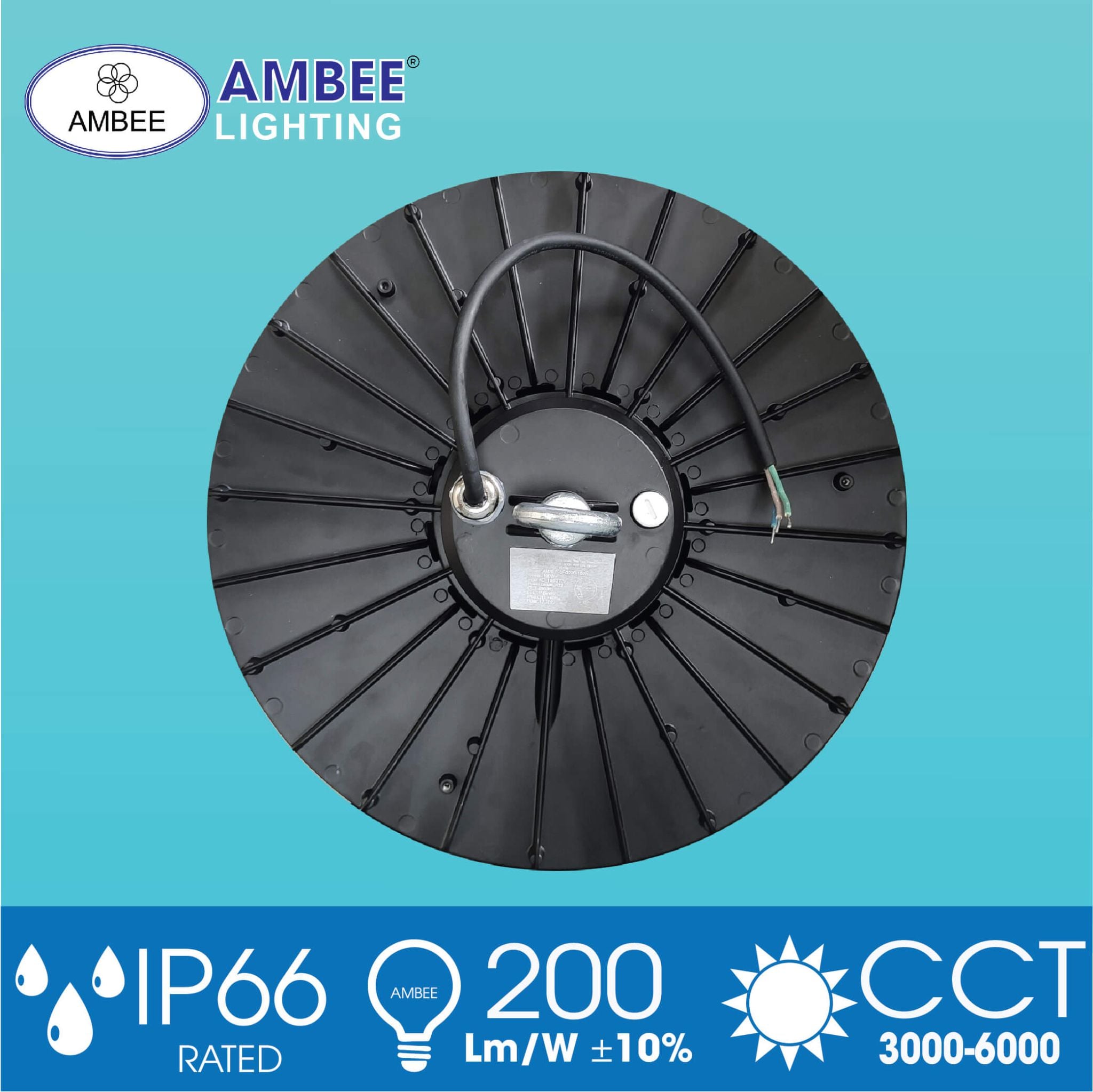

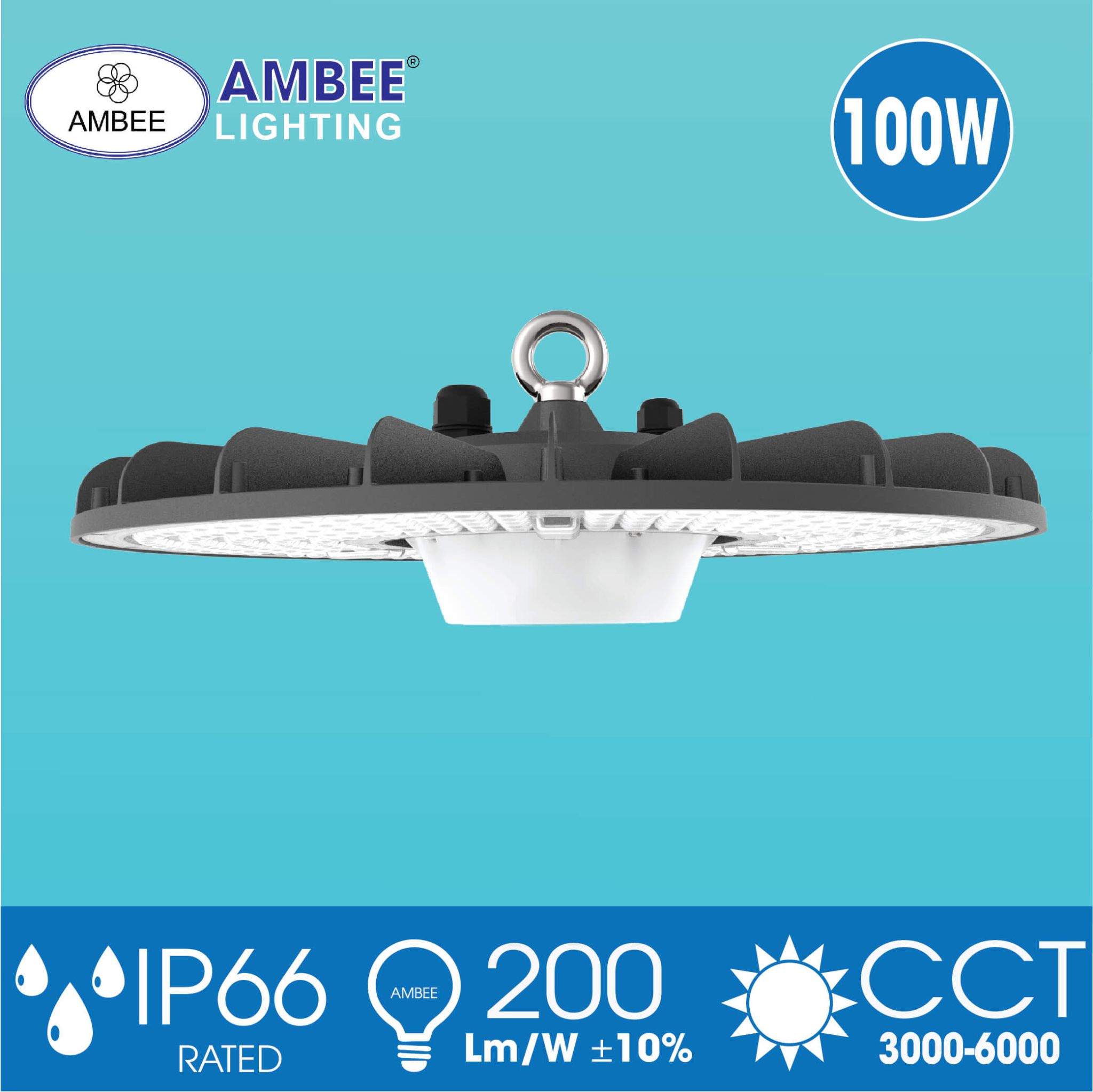

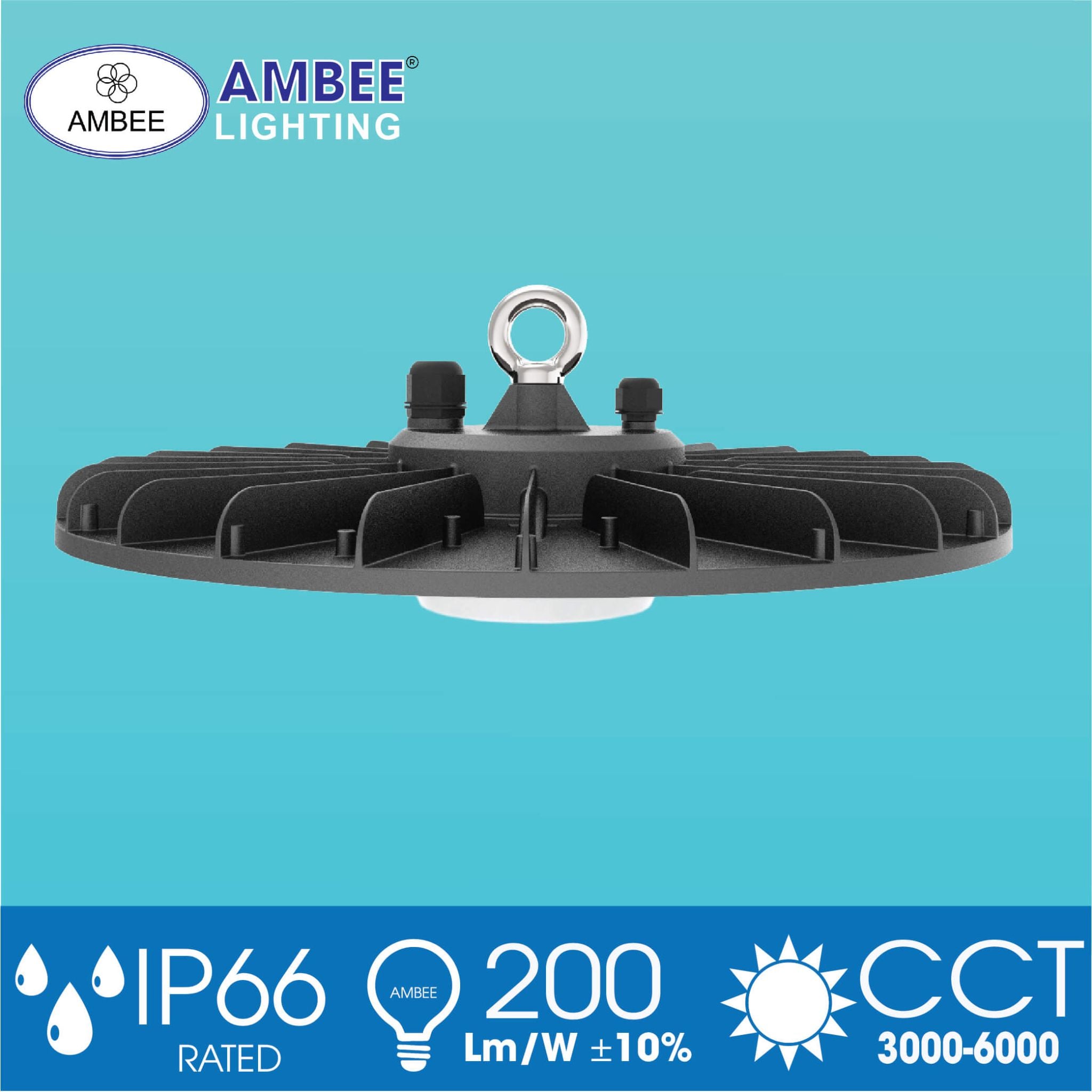

Led Highbay UFO200 100W
Contact
Sales policy
-
Free: consulting on designing energy saving lighting solutions.
-
Free: 100% of the cost of the product trial.
-
Free: City shipping. HCM within 10km.
-
Free: Suburban shipping with purchase of more than 200 sets
-
Warranty: from 3 to 5 years depending on the product
-
Maintenance: Periodic product inspection at the factory every 3 - 6 months.
Free: consulting on designing energy saving lighting solutions.
Free: 100% of the cost of the product trial.
Free: City shipping. HCM within 10km.
Free: Suburban shipping with purchase of more than 200 sets
Warranty: from 3 to 5 years depending on the product
Maintenance: Periodic product inspection at the factory every 3 - 6 months.
PRODUCT SPECIFICATIONS:
| PRODUC MODEL | AMBEE-UFO200-100W |
| Power | 100W |
| Input Voltage | 100 - 277VAC/ 50 - 60Hz |
| Power Factor (PF) | 0.95 |
| Working temperature | -40°C ~ 45°C |
| CCT | 2700 - 6500K |
| Beam Angle | 60°/ 90°/ 120° |
| Efficacy/Ra | 185 Lm/W ±5% / 80Ra |
| Efficacy/Ra | 200 Lm/W ±5% / 70Ra |
| Luminous Flux | 18.500 Lm ±5% ( 185 Lm ) 20.000 Lm ±5% ( 200 Lm ) |

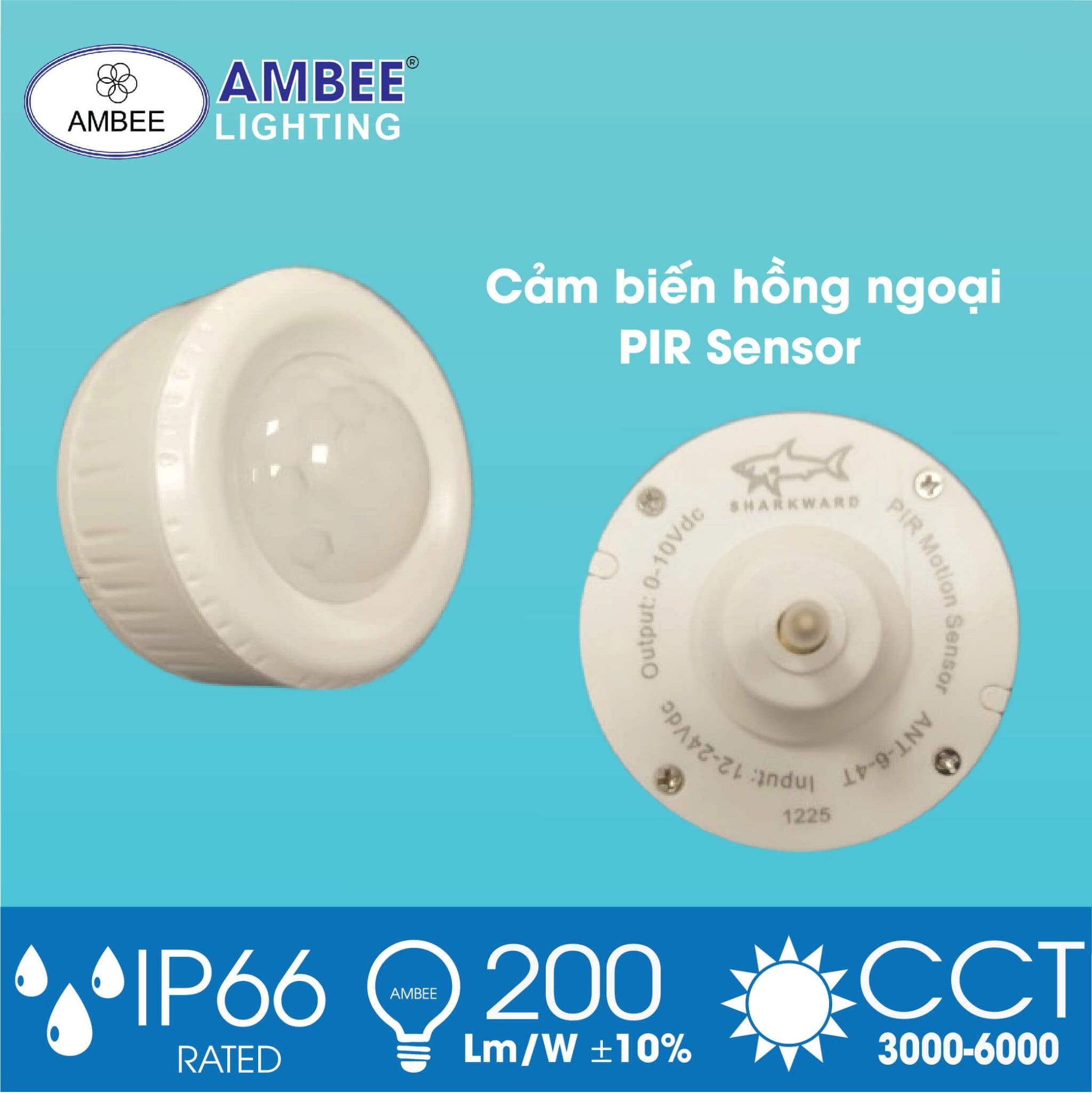

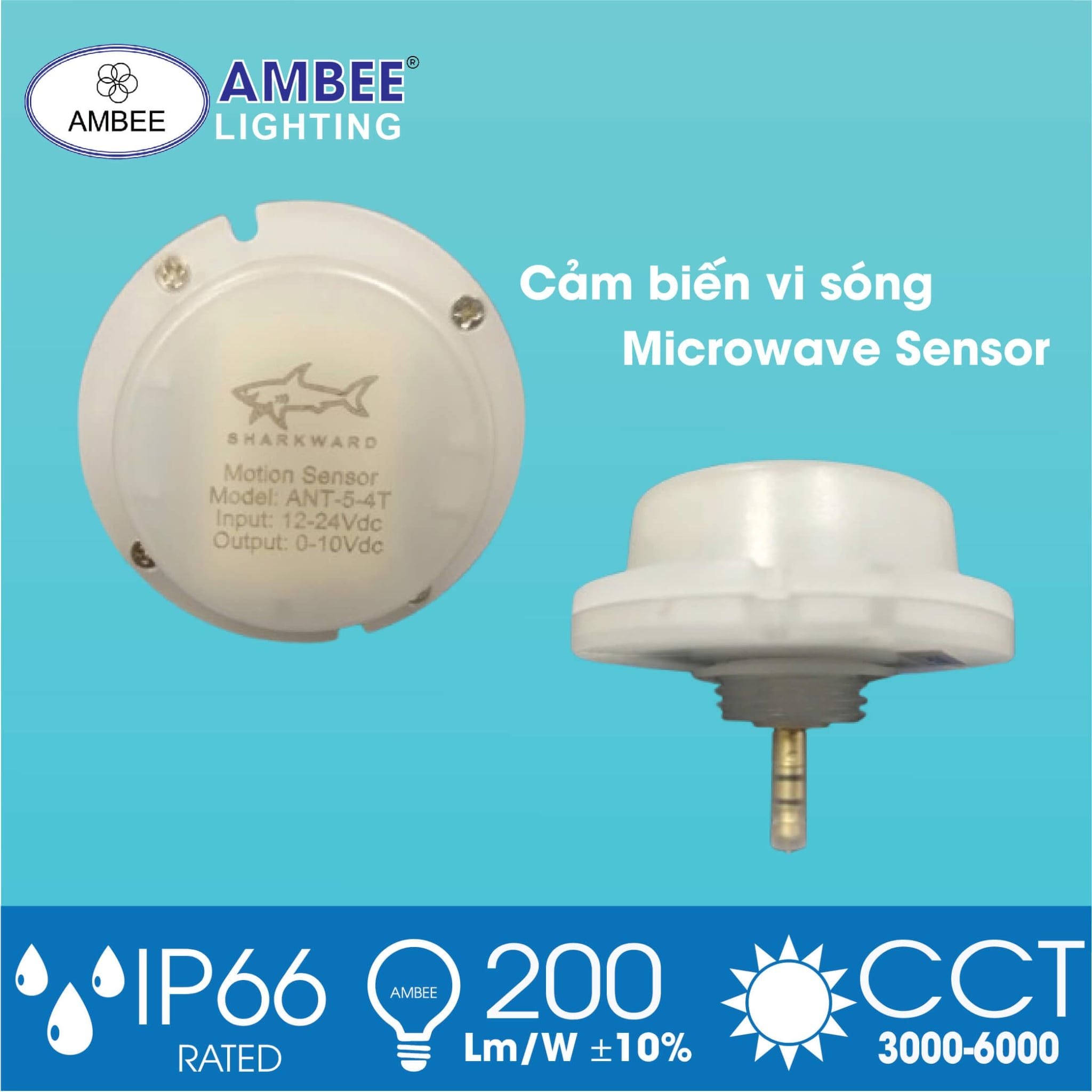

| Smart Control | Motion sensor |
| Dimension | Φ334x166 mm (DxH) |
| Weight | 2.6 kg |
| Material | Die cast aluminum |
| Protection level | IP66 |
| Led Type | SMD 2835 - Bridgelux |
| Source Type | Meanwell |
| Life time | 50.000 h |
| Warranty | 2~5 year |
| Origin | AMBEE |
PRODUCT DIMENSIONS:
BEAM ANGLE:

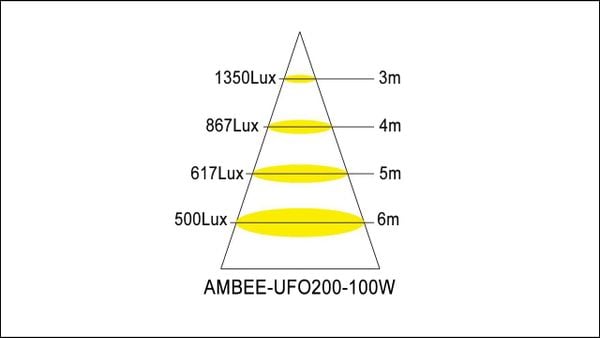

ILLUMINATION DISTRIBUTION DRAWING:
