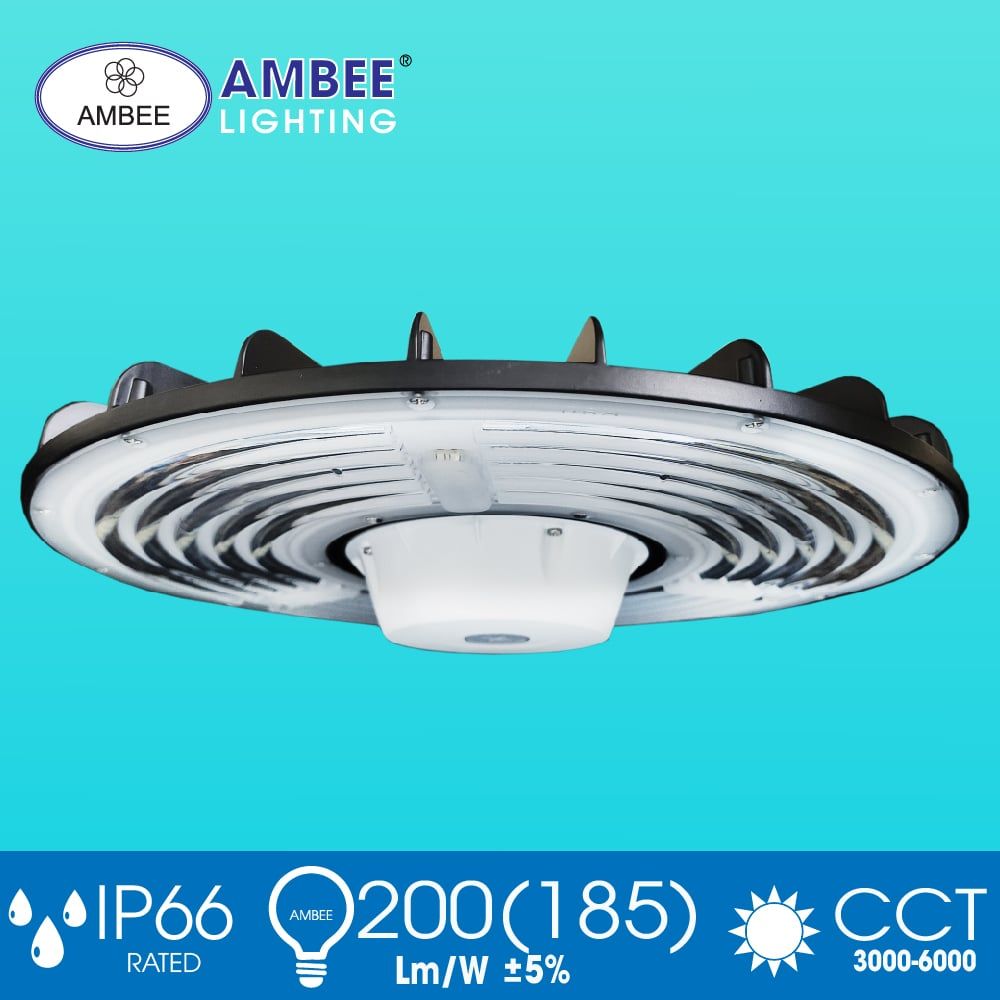

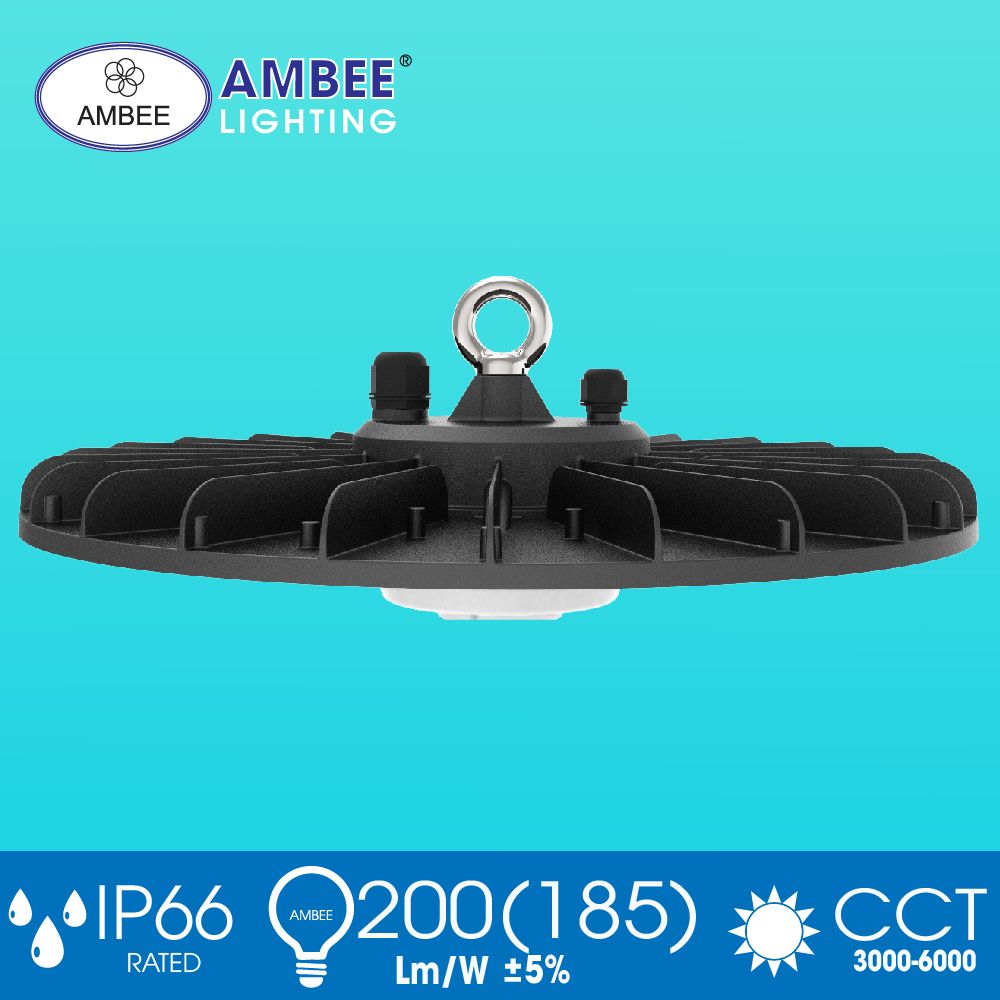

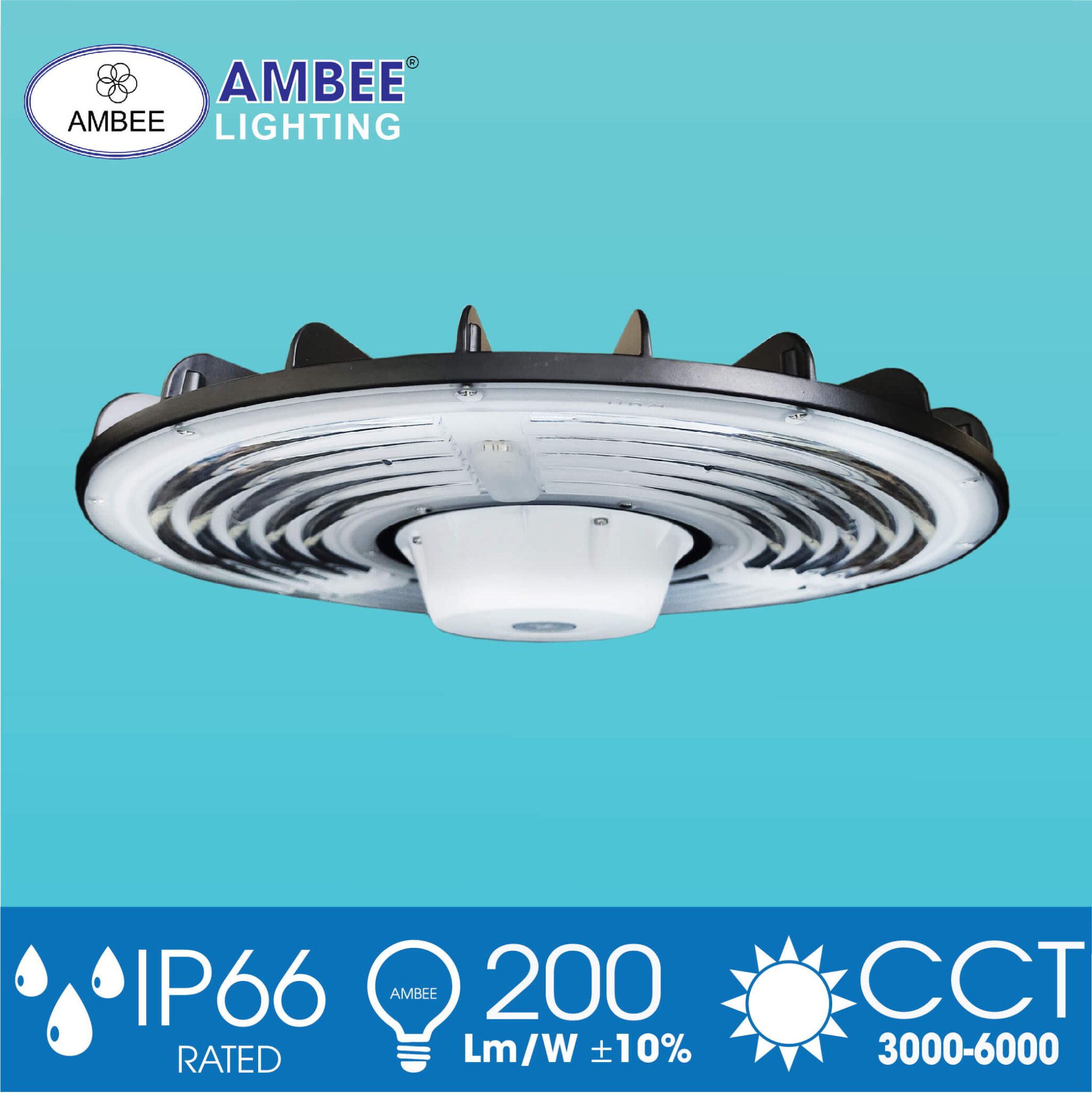

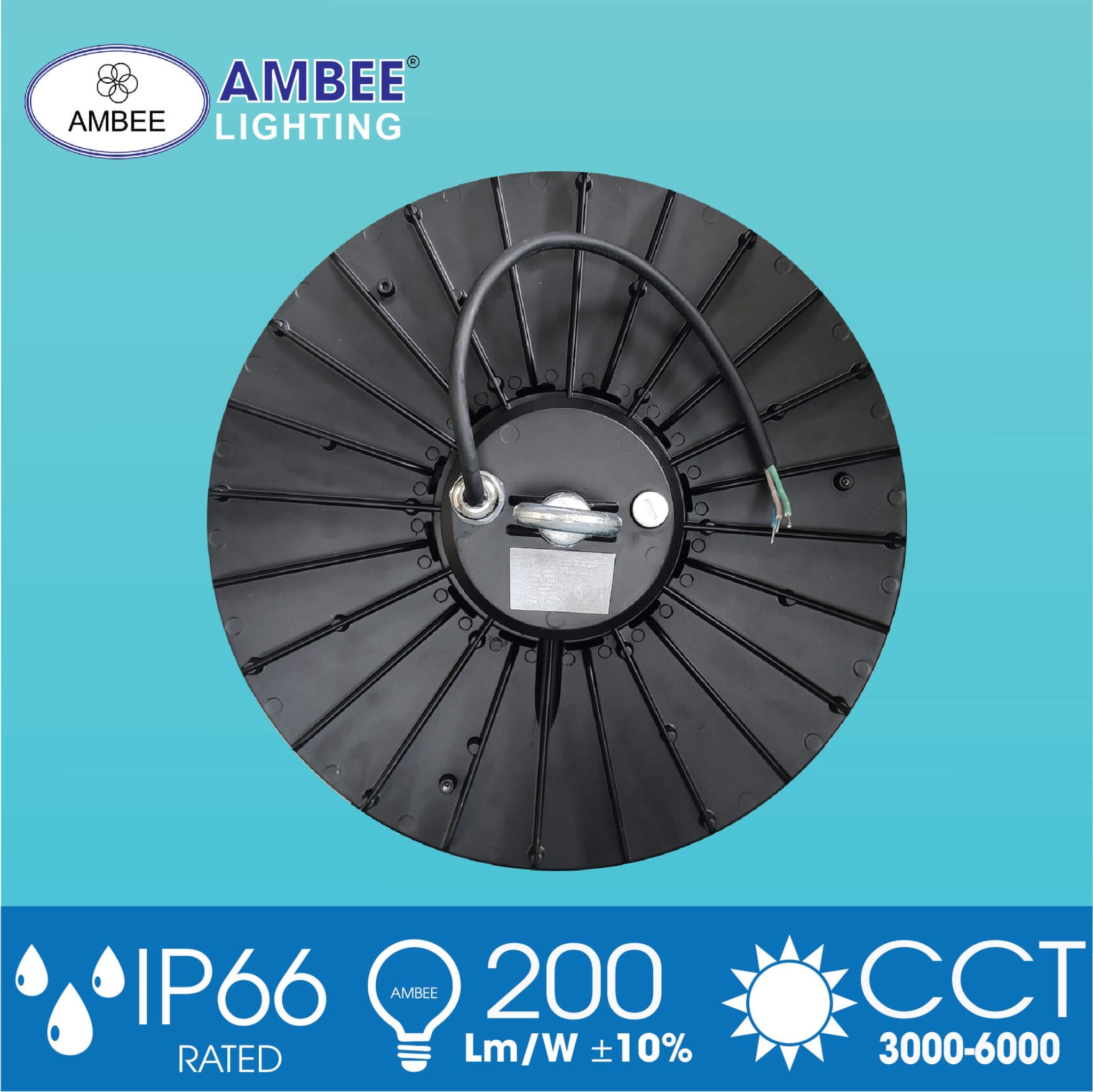

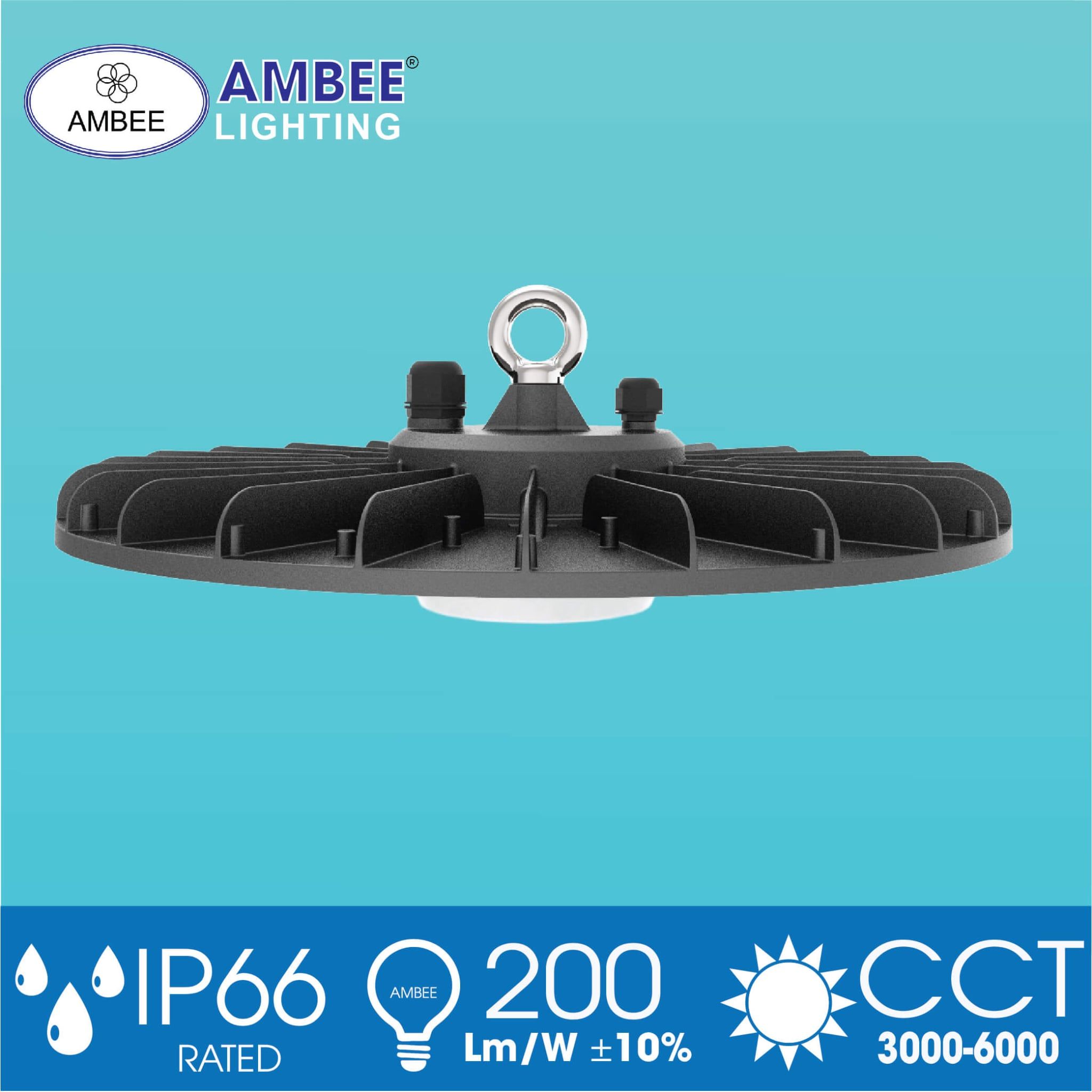

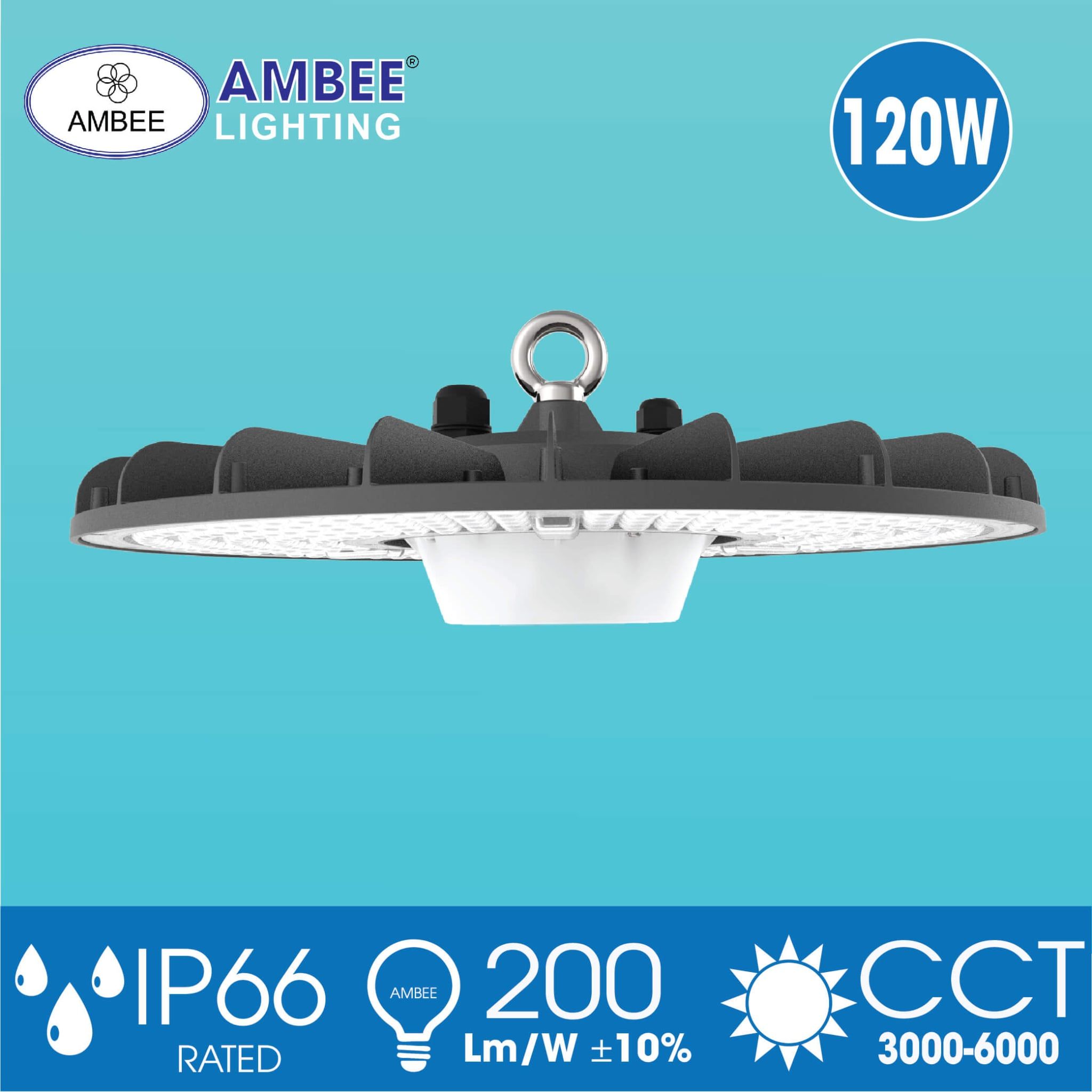

Led Highbay UFO200 120W
Led Highbay UFO200 120W
Led Highbay UFO200 120W
Led Highbay UFO200 120W
Led Highbay UFO200 120W

Led Highbay UFO200 120W

Price :Contact
Trademark AMBEE
AMBEE-UFO200-120W

Sales policy

  • Free: consulting on designing energy saving lighting solutions.
  • Free: 100% of the cost of the product trial.
  • Free: City shipping. HCM within 10km.
  • Free: Suburban shipping with purchase of more than 200 sets
  • Warranty: from 3 to 5 years depending on the product
  • Maintenance: Periodic product inspection at the factory every 3 - 6 months.

PRODUCT SPECIFICATIONS:

 PRODUC MODELAMBEE-UFO200-120W
 Power120W
 Input Voltage100 - 277VAC/ 50 - 60Hz
 Power Factor (PF)0.95
 Working temperature-40°C ~ 45°C
 CCT2700 - 6500K
 Beam Angle60°/ 90°/ 120°
 Efficacy/Ra185 Lm/W ±5% / 80Ra
 Efficacy/Ra200 Lm/W ±5% / 70Ra
 Luminous Flux22.200 Lm ±5%  ( 185 Lm )
24.000 Lm ±5%  ( 200 Lm )

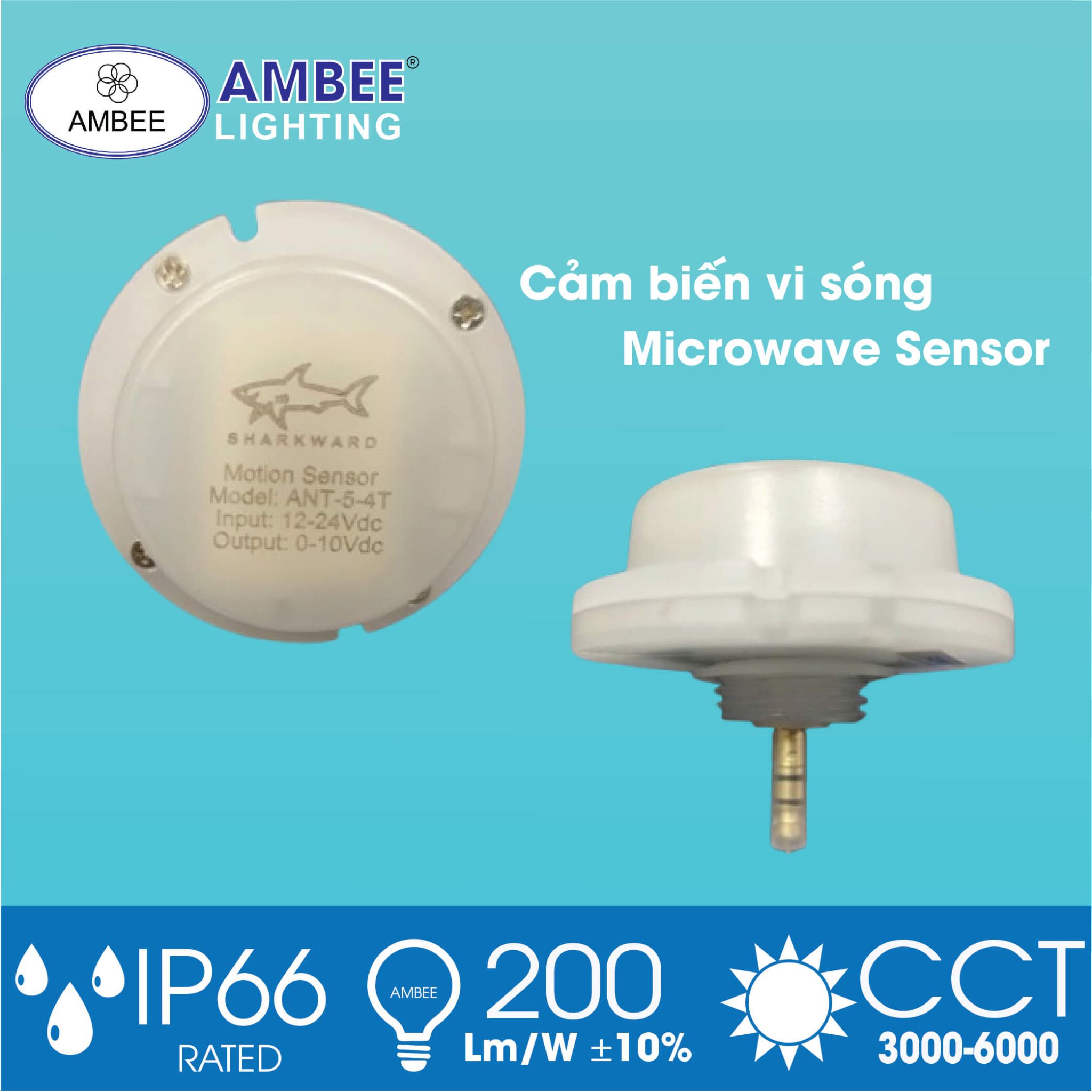

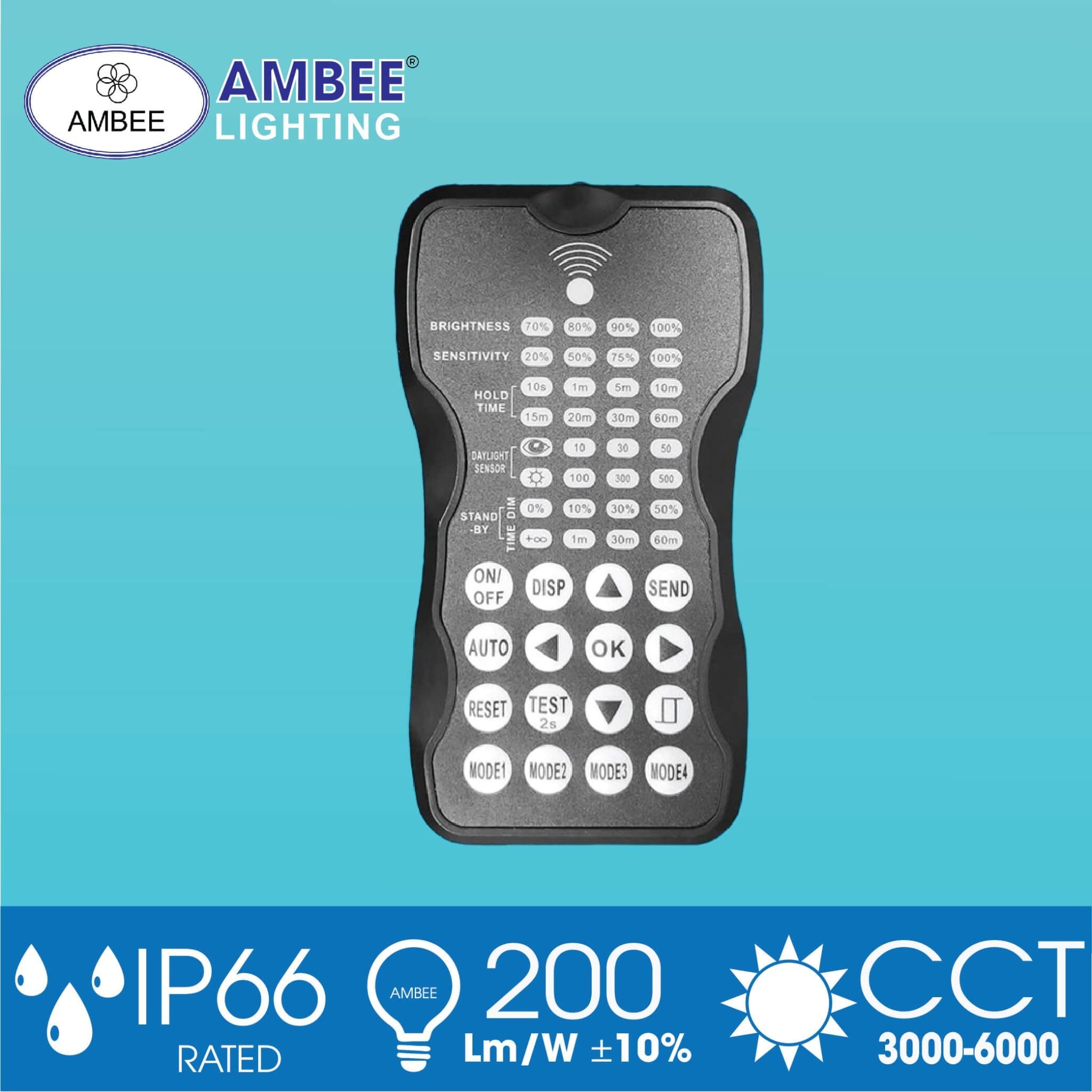

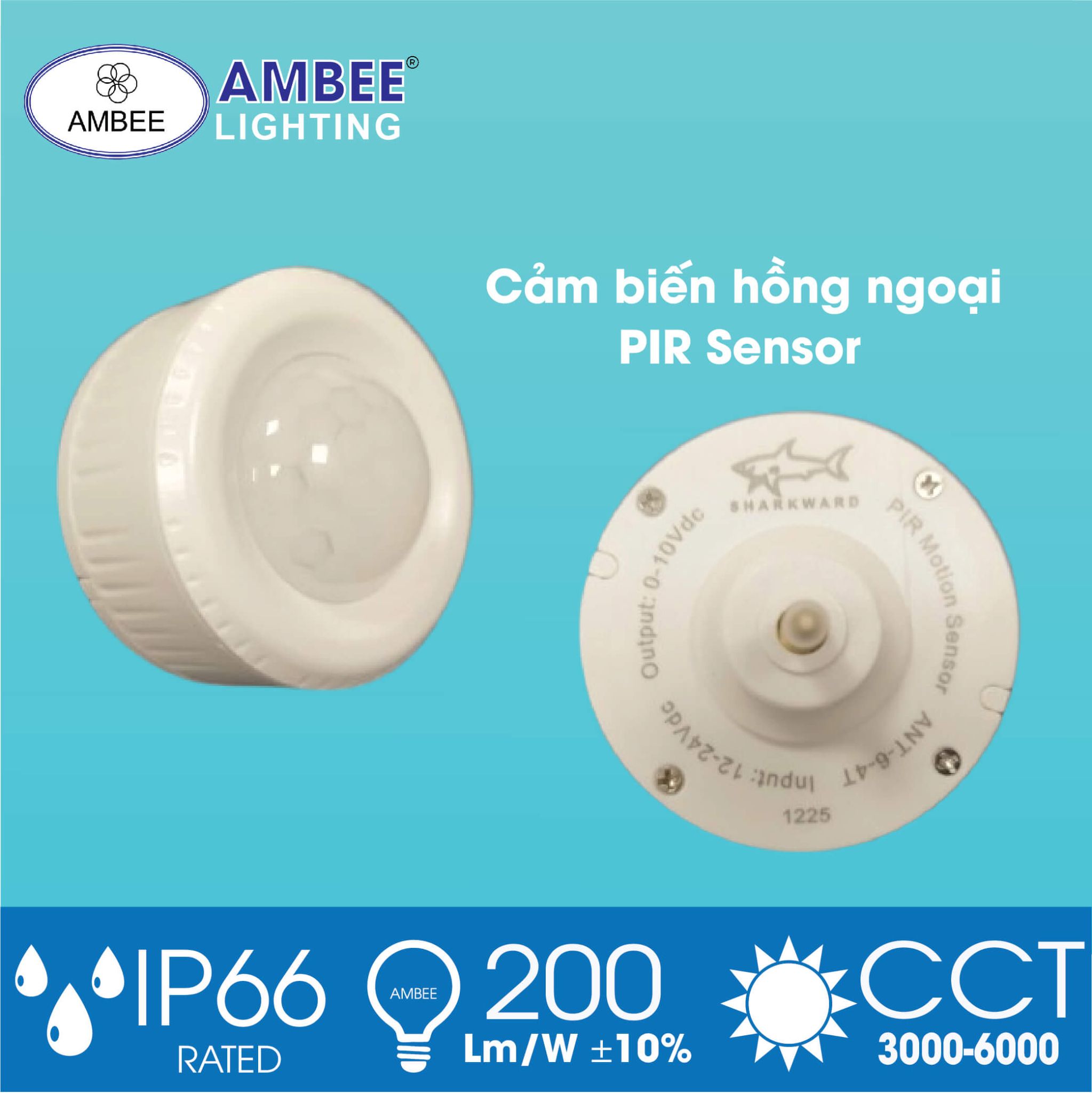

Smart ControlMotion sensor
 DimensionΦ334x166 mm (DxH)
 Weight2.6 kg
 MaterialDie cast aluminum
 Protection levelIP66

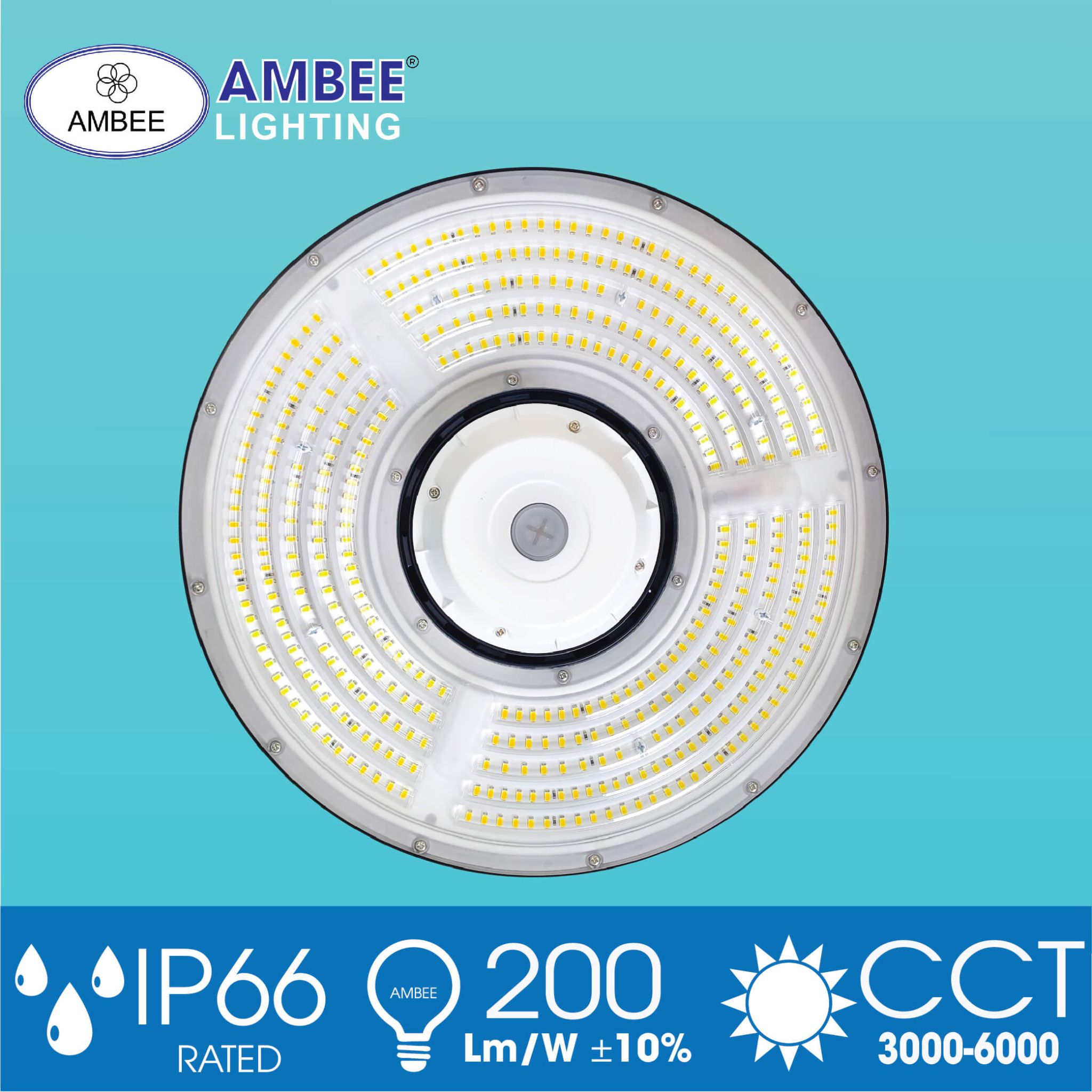

 Led TypeSMD 2835 - Bridgelux
 Source TypeMeanwell
 Life time50.000 h
 Warranty2~5 year
 OriginAMBEE

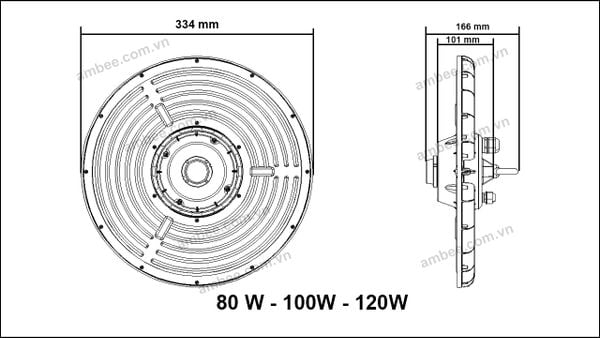

PRODUCT DIMENSIONS:



 BEAM ANGLE:

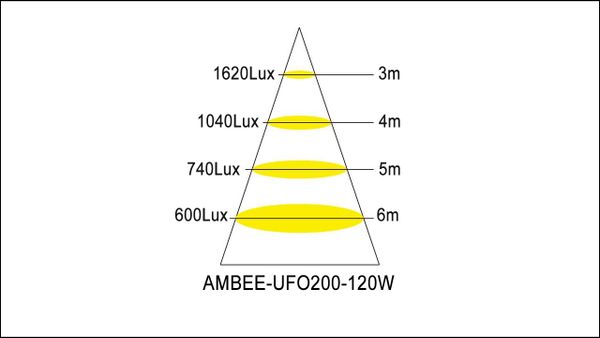

ILLUMINATION DISTRIBUTION DRAWING:
