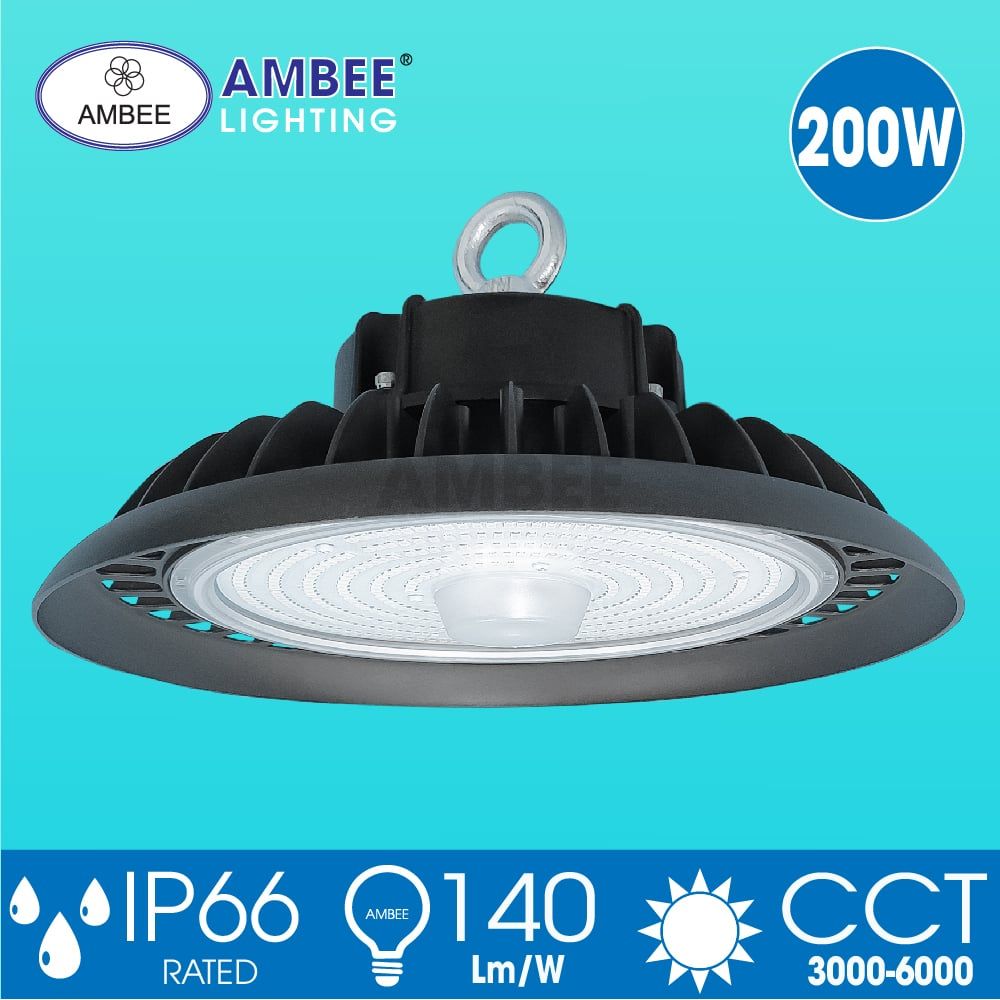

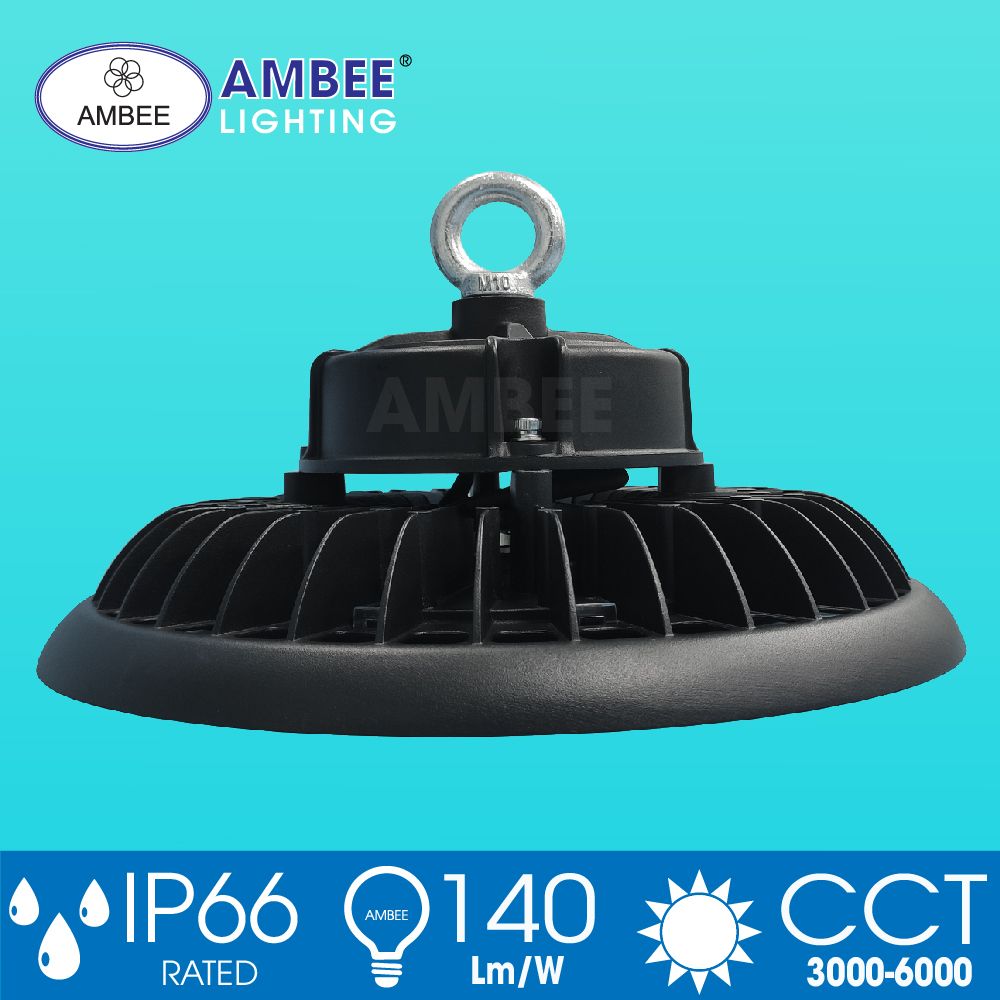

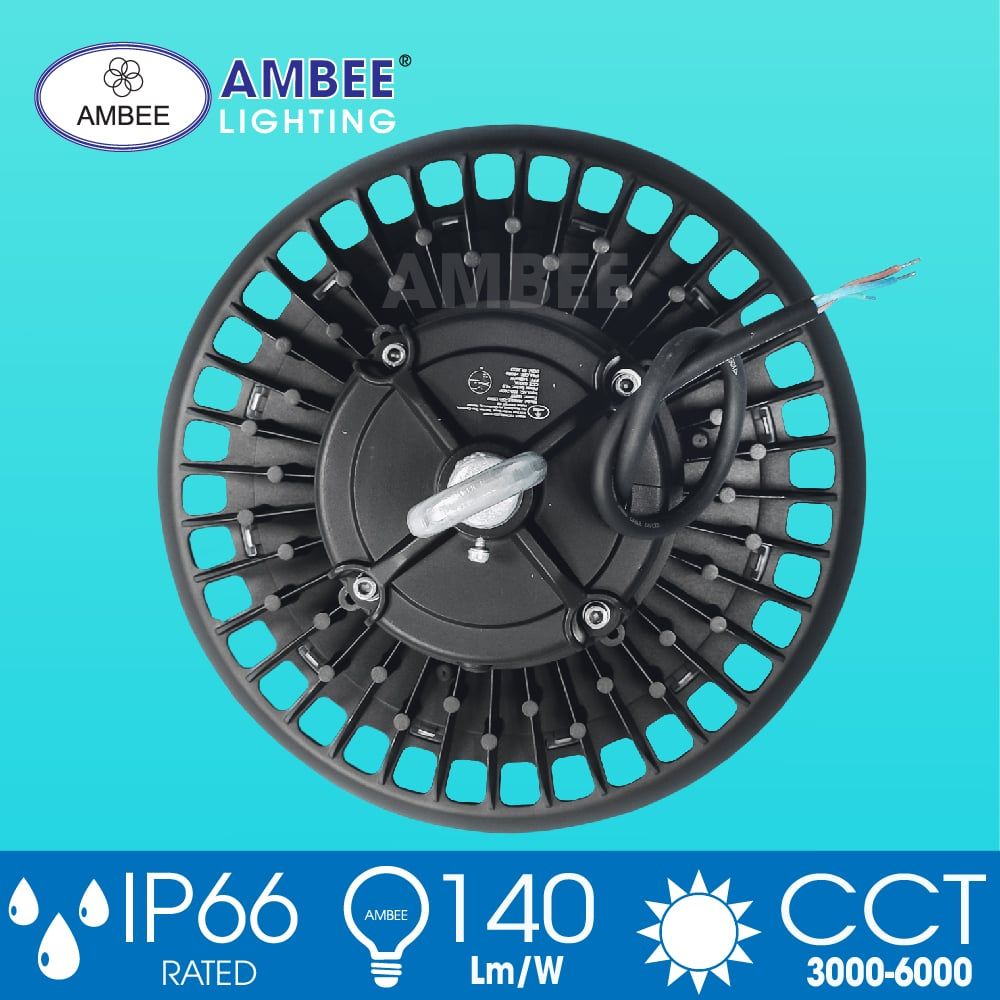

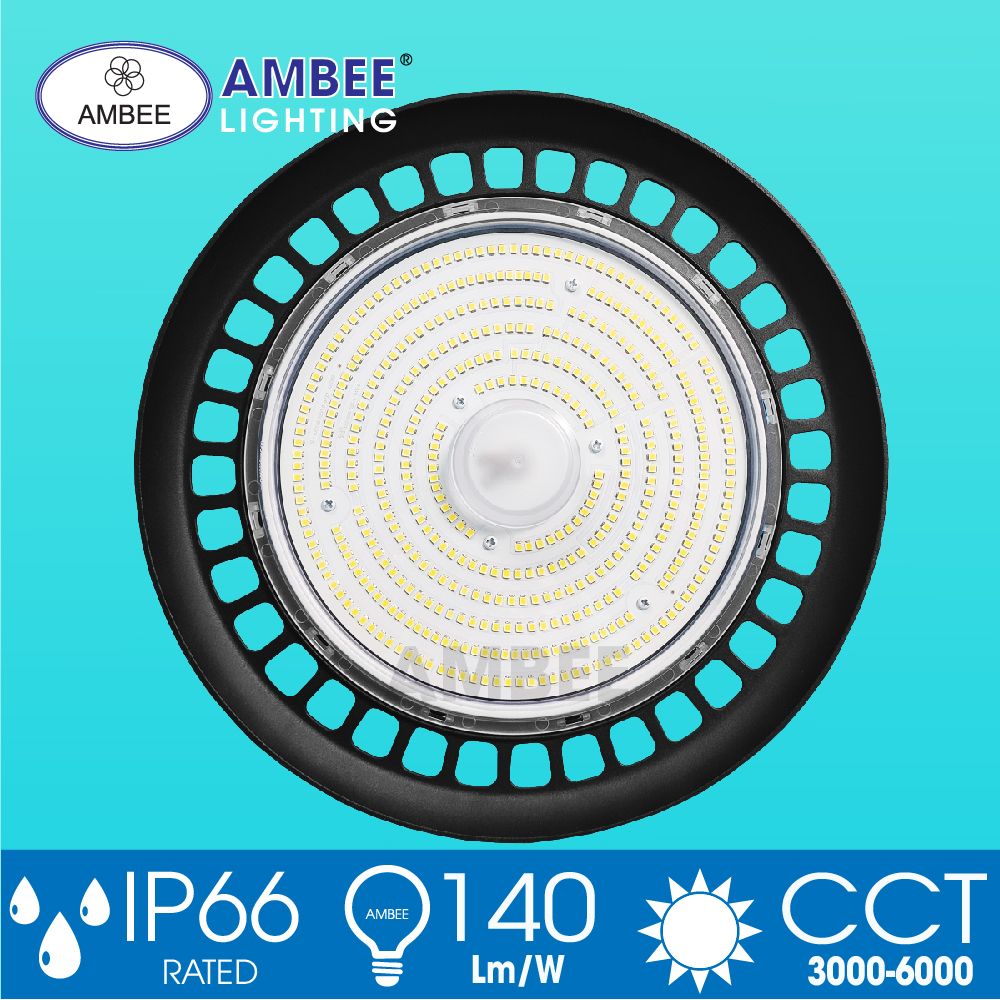

Led Highbay UF140 200W
Contact
Sales policy
- Free: consulting on designing energy saving lighting solutions.
- Free: 100% of the cost of the product trial.
- Free: City shipping. HCM within 10km.
- Free: Suburban shipping with purchase of more than 200 sets
- Warranty: from 3 to 5 years depending on the product
- Maintenance: Periodic product inspection at the factory every 3 - 6 months.
PRODUCT SPECIFICATIONS:
PRODUC MODEL | AMBEE-UF140-200W |
Power | 200W |
Input Voltage | 220 - 240 VAC/ 50 - 60Hz |
Power Factor (PF) | 0.95 |
Working temperature | -40°C ~ 45°C |
CRI | >70Ra |
CCT | 3000 - 6000K |
Beam Angle | 60°/ 90°/ 120° |
Efficacy | 140 Lm/W ±5% |
Luminous Flux | 28.000 Lm ±5% |
Dimension | Φ347x159 mm (DxH) |
Weight | 3.5 kg |
Material | Die cast aluminum |
Protection level | IP66 |
Led Type | SMD 2835 - Bridgelux |
Source Type | Meanwell |
Life time | 50.000 h |
Warranty | 2~3 year |
Origin | AMBEE |
PRODUCT DIMENSIONS:
BEAM ANGLE:
ILLUMINATION DISTRIBUTION DRAWING:
